T1000-145 Extreme (Military Spec) Steel Cable Winch

Built specifically for military use, able to withstand extreme climates & temps. Features include hardened 3 stage planetary gears for reliable and efficient use in the harshest environments. The waterproof remote control has thermometric LED indicators signals to monitor the temperature of the motor and high temp lithium grease is used which doesn’t solidify in extreme climates.

Features

• IP68 Rated Military Grade Winch & Control Box.
• Hardened 3 stage planetary gears.
• Waterproof remote control with LED indicators.
• Corrosion & Chemical Resistant Powder Coat.
• High Temperature Lithium Grease that won’t solidify in extreme temperatures.

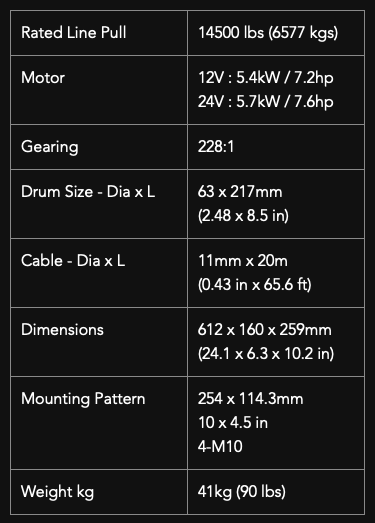

Specifications

• Rated Line Pull: 14,500 lbs (6,577 kg)
• Motor Options: 12V: 5.4 kW / 7.2 hp, 24V: 5.7 kW / 7.6 hp
• Gear Ratio: 228:1
• Drum Size: 63 x 217 mm (2.48 x 8.5 in)
• Cable Size: 11 mm x 20 m (0.43 in x 65.6 ft)
• Dimensions: 612 x 160 x 259 mm (24.1 x 6.3 x 10.2 in)
• Mounting Pattern: 254 x 114.3 mm (10 x 4.5 in)
• Weight: 41 kg (90 lbs)
