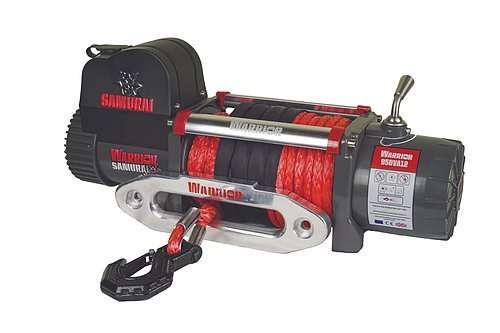

Samurai 9500 Synthetic Rope Winch

The premium “Next Generation” Samurai range are even faster, with a lower current draw and now boast a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there’s no heat build up in the drum, perfect for Armortek Ropes.

Ideal for recovery and 4×4 applications. Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contractors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with Aluminium Hawse Fairlead and fittings as standard. The 12V version comes complete with heavy duty integrated wireless remote.

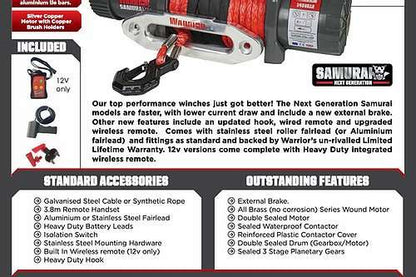

Outstanding Features

• All Brass (no corrosion) Series Wound Motor
• Double Sealed Motor
• Sealed Waterproof Contractor
• Contractor Cover for Added Protection
• Double Sealed Drum (Gearbox/Motor)
• Sealed 3 Stage Planetary Gears
• Aluminium Hawse Fairlead

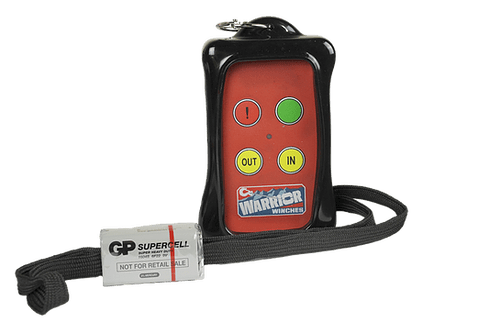

• Integrated Wireless Remote (12V only)

Features

• All Brass (no corrosion) Series Wound Motor
• Double Sealed Motor
• Sealed Waterproof Contractor
• Contractor Cover for Added Protection
• Double Sealed Drum (Gearbox/Motor)
• Sealed 3 Stage Planetary Gears
• Aluminium Hawse Fairlead
• Integrated Wireless Remote (12V only)

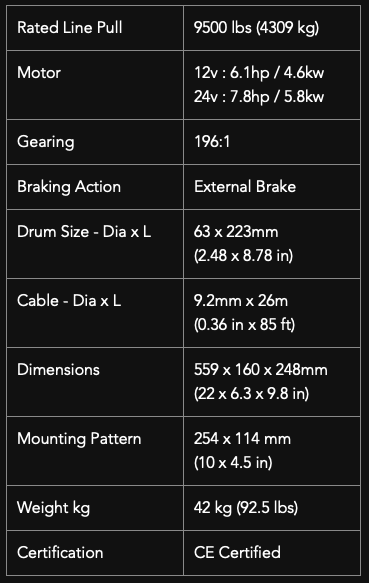

Specifications

Rated Line Pull & Motor Specs

• Rated Line Pull: 9500 lbs (4309 kg)

• Motor: 12v : 6.1hp / 4.6kw, 24v : 7.8hp / 5.8kw

Mechanical Details

• Gearing: 196:1

• Braking Action: External Brake

• Drum Size – Dia x L: 63 x 223mm (2.48 x 8.78 in)

• Cable – Dia x L: 9.2mm x 26m (0.36 in x 85 ft)

Dimensions & Mounting

• Dimensions: 559 x 160 x 248mm (22 x 6.3 x 9.8 in)

• Mounting Pattern: 254 x 114 mm (10 x 4.5 in)

• Weight: 42 kg (92.5 lbs)

• Certification: CE Certified

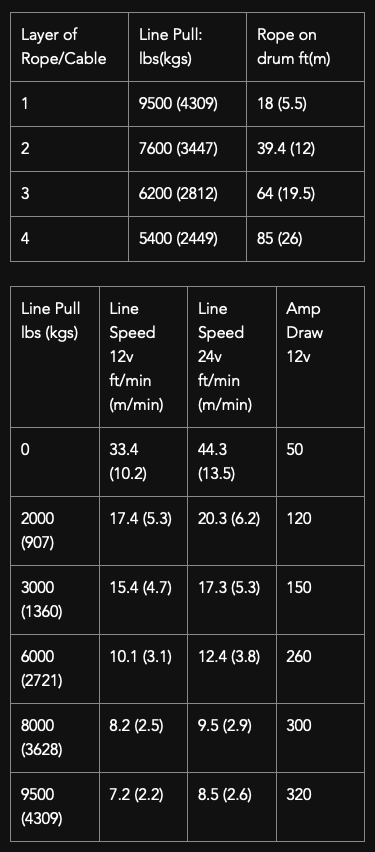

Layer of Rope/Cable Capacity

• 1st Layer: Line Pull: 9500 lbs (4309 kg), Rope on drum: 18 ft (5.5 m)

• 2nd Layer: Line Pull: 7600 lbs (3447 kg), Rope on drum: 39.4 ft (12 m)

• 3rd Layer: Line Pull: 6200 lbs (2812 kg), Rope on drum: 64 ft (19.5 m)

• 4th Layer: Line Pull: 5400 lbs (2449 kg), Rope on drum: 85 ft (26 m)

Performance – Line Speed and Amp Draw (12v / 24v)

• 0 lbs: 12v: 33.4 ft/min (10.2 m/min), 24v: 44.3 ft/min (13.5 m/min), Amp Draw (12v): 50

• 2000 lbs (907 kg): 12v: 17.4 ft/min (5.3 m/min), 24v: 20.3 ft/min (6.2 m/min), Amp Draw (12v): 120

• 3000 lbs (1360 kg): 12v: 15.4 ft/min (4.7 m/min), 24v: 17.3 ft/min (5.3 m/min), Amp Draw (12v): 150

• 6000 lbs (2721 kg): 12v: 10.1 ft/min (3.1 m/min), 24v: 12.4 ft/min (3.8 m/min), Amp Draw (12v): 260

• 8000 lbs (3628 kg): 12v: 8.2 ft/min (2.5 m/min), 24v: 9.5 ft/min (2.9 m/min), Amp Draw (12v): 300

• 9500 lbs (4309 kg): 12v: 7.2 ft/min (2.2 m/min), 24v: 8.5 ft/min (2.6 m/min), Amp Draw (12v): 320
