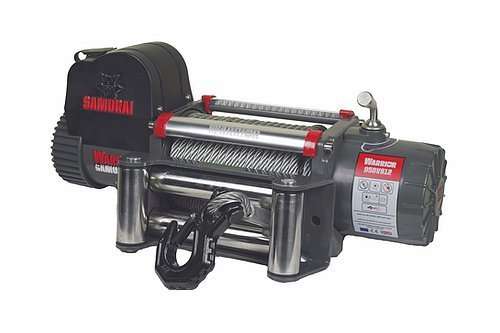

Samurai 9500 Steel Cable Winch

The premium “Next Generation” Samurai range are even faster, with a lower current draw and now boast a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there’s no heat build up in the drum, perfect for Armortek Ropes.

Ideal for recovery and 4×4 applications. Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contractors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with Aluminium Hawse Fairlead and fittings as standard. The 12V version comes complete with heavy duty integrated wireless remote.

Features

• All Brass (no corrosion) Series Wound Motor
• Double Sealed Motor
• Sealed Waterproof Contractor
• Contractor Cover for Added Protection
• Double Sealed Drum (Gearbox/Motor)
• Sealed 3 Stage Planetary Gears
• Aluminium Hawse Fairlead
• Integrated Wireless Remote (12V only)

Specifications

• Rated Line Pull: 9500 lbs (4309 kg)

• Motor:

  • 12v : 6.1hp / 4.6kw

  • 24v : 7.8hp / 5.8kw

• Gearing: 196:1

• Braking Action: External Brake

• Drum Size – Dia x L: 63 x 223mm (2.48 x 8.78 in)

• Cable – Dia x L: 9.2mm x 26m (0.36 in x 85 ft)

• Dimensions: 559 x 160 x 248mm (22 x 6.3 x 9.8 in)

• Mounting Pattern: 254 x 114 mm (10 x 4.5 in)

• Weight: 42 kg (92.5 lbs)

• Certification: CE Certified

Layer of Rope/Cable

• 1st Layer:

  • Line Pull: 9500 lbs (4309 kg)

  • Rope on drum: 18 ft (5.5 m)

• 2nd Layer:

  • Line Pull: 7600 lbs (3447 kg)

  • Rope on drum: 39.4 ft (12 m)

• 3rd Layer:

  • Line Pull: 6200 lbs (2812 kg)

  • Rope on drum: 64 ft (19.5 m)

• 4th Layer:

  • Line Pull: 5400 lbs (2449 kg)

  • Rope on drum: 85 ft (26 m)

Line Pull / Line Speed / Amp Draw

• Line Pull: lbs (kgs)

• Line Speed 12v (ft/min / m/min)

• Line Speed 24v (ft/min / m/min)

• Amp Draw 12v

  • 0: 33.4 (10.2) / 44.3 (13.5) / 50

  • 2000 (907): 17.4 (5.3) / 20.3 (6.2) / 120

  • 3000 (1360): 15.4 (4.7) / 17.3 (5.3) / 150

  • 6000 (2721): 10.1 (3.1) / 12.4 (3.8) / 260

  • 8000 (3628): 8.2 (2.5) / 9.5 (2.9) / 300

  • 9500 (4309): 7.2 (2.2) / 8.5 (2.6) / 320
