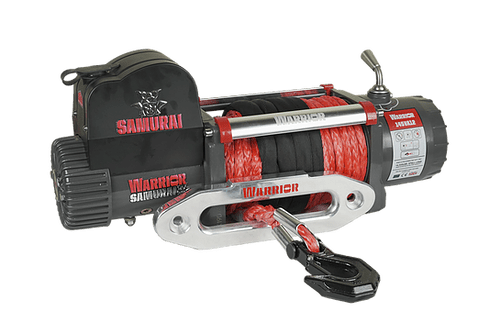

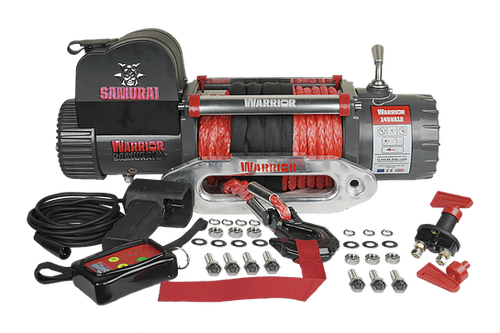

Samurai 14500 Synthetic Rope Winch

The premium “Next Generation” Samurai range are even faster, with a lower current draw and now boast a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there’s no heat build up in the drum, perfect for Armortek Ropes.

Ideal for recovery and 4×4 applications. Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contractors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with Aluminium Hawse Fairlead and fittings as standard. The 12V version comes complete with heavy duty integrated wireless remote.

Features

• All Brass (no corrosion) Series Wound Motor
• Double Sealed Motor
• Sealed Waterproof Contractor
• Contractor Cover for Added Protection
• Double Sealed Drum (Gearbox/Motor)
• Sealed 3 Stage Planetary Gears
• Aluminium Hawse Fairlead

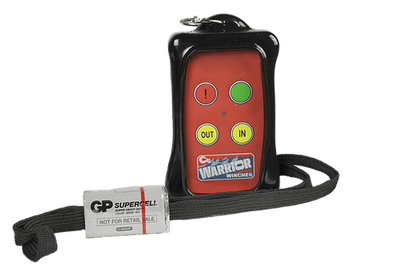

• Integrated Wireless Remote (12V only)

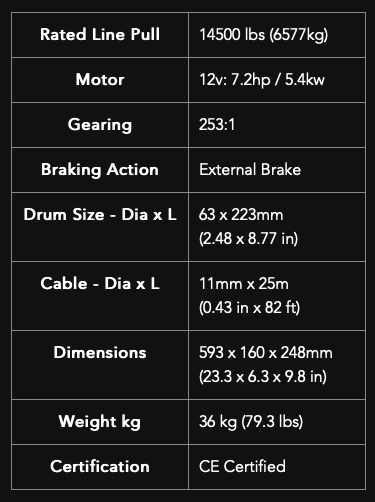

Specifications

• Rated Line Pull: 14,500 lbs (6,577 kg)
• Motor: 12V: 7.2 hp / 5.4 kW
• Gear Ratio: 253:1
• Braking Action: External Brake
• Drum Size: 63 x 223 mm (2.48 x 8.77 in)
• Cable Size: 11 mm x 25 m (0.43 in x 82 ft)
• Dimensions: 593 x 160 x 248 mm (23.3 x 6.3 x 9.8 in)
• Weight: 36 kg (79.3 lbs)
• Certification: CE Certified
