Samurai 14500 Steel Cable Winch

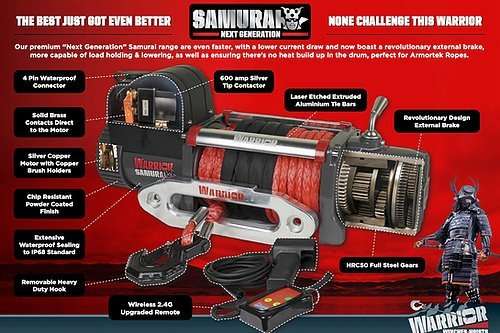

The premium “Next Generation” Samurai range are even faster, with a lower current draw and now boast a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there’s no heat build up in the drum, perfect for Armortek Ropes.

Ideal for recovery and 4×4 applications. Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contractors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with Aluminium Hawse Fairlead and fittings as standard. The 12V version comes complete with heavy duty integrated wireless remote.

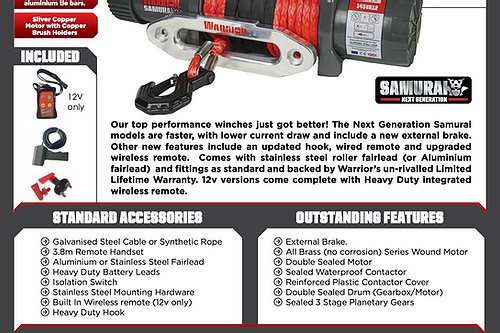

Features

All Brass (no corrosion) Series Wound Motor

• Double Sealed Motor
• Sealed Waterproof Contractor
• Contractor Cover for Added Protection
• Double Sealed Drum (Gearbox/Motor)
• Sealed 3 Stage Planetary Gears
• Aluminium Hawse Fairlead
• Integrated Wireless Remote (12V only)

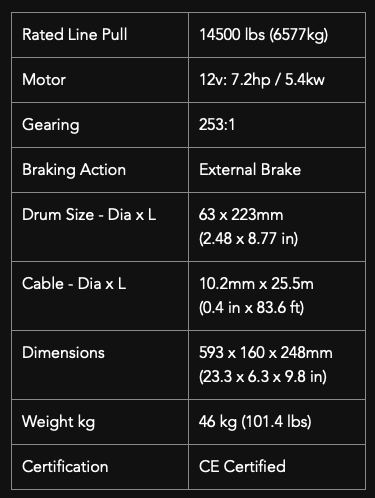

Specifications

• Rated Line Pull: 14500 lbs (6577 kg)
• Motor: 12v: 7.2hp / 5.4kw
• Gearing: 253:1
• Braking Action: External Brake
• Drum Size (Dia x L): 63 x 223mm (2.48 x 8.77 in)
• Cable (Dia x L): 10.2mm x 25.5m (0.4 in x 83.6 ft)
• Dimensions: 593 x 160 x 248mm (23.3 x 6.3 x 9.8 in)
• Weight: 46 kg (101.4 lbs)
• Certification: CE Certified
• Line Pull by Rope Layer:
  • 1st: 14500 lbs (6577 kg)
  • 2nd: 11519 lbs (5224 kg)
  • 3rd: 9556 lbs (4334 kg)
  • 4th: 8163 lbs (3702 kg)
• Performance (12v / 24v – Line Speed ft/min (m/min), Amp Draw 12v):
  • 0 lbs: 31.16 (9.5) / 39.3 (12.0), 60 A
  • 6000 lbs (2728 kg): 12.46 (3.8) / 13.8 (4.2), 200 A
  • 10000 lbs (4545 kg): 5.57 (1.7) / 8.2 (2.5), 310 A
  • 12000 lbs (5443 kg): 4.92 (1.5) / 5.9 (1.8), 380 A
  • 14500 lbs (6577 kg): 3.28 (1.0) / 4.26 (1.3), 430 A
