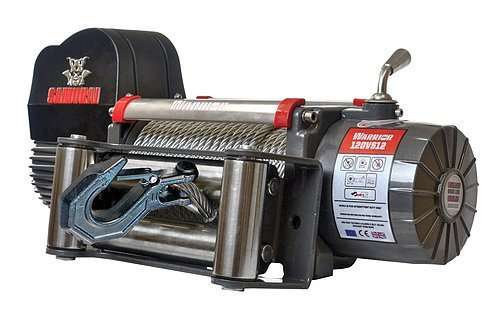

Samurai 12000 Steel Cable Winch

The premium “Next Generation” Samurai range are even faster, with a lower current draw and now boast a revolutionary external brake, more capable of load holding & lowering, as well as ensuring there’s no heat build up in the drum, perfect for Armortek Ropes.

Ideal for recovery and 4×4 applications. Outstanding features include high quality series wound double sealed motor with solid brass contacts, heavy duty 4 pin waterproof contractors, double sealed drum on maintenance free bearings and quiet, efficient full steel planetary gearing. Comes with Aluminium Hawse Fairlead and fittings as standard. The 12V version comes complete with heavy duty integrated wireless remote.

Features

• All Brass (no corrosion) Series Wound Motor
• Double Sealed Motor
• Sealed Waterproof Contractor
• Contractor Cover for Added Protection
• Double Sealed Drum (Gearbox/Motor)
• Sealed 3 Stage Planetary Gears
• Aluminium Hawse Fairlead
• Integrated Wireless Remote (12V only)

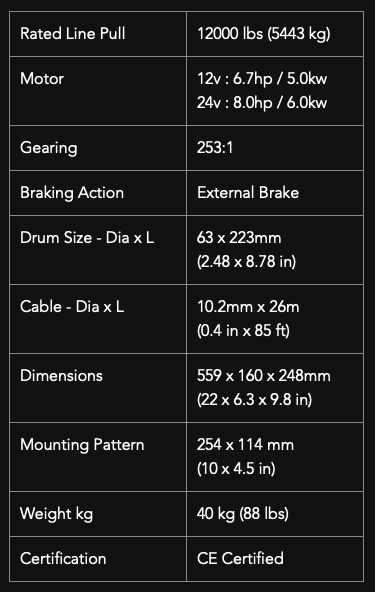

Specifications

• Rated Line Pull: 12,000 lbs (5,443 kg) for powerful performance
• Motor Options:12V: 6.7hp / 5.0kW and 24V: 8.0hp / 6.0kW
• Gear Ratio: 253:1 for smooth and reliable operation
• External Brake System for added safety and control
• Durable Cable: 10.2mm x 26m (0.4 in x 85 ft)
• Drum Size: 63 x 223 mm (2.48 x 8.78 in)
• Compact Dimensions: 559 x 160 x 248 mm (22 x 6.3 x 9.8 in)
• Mounting Pattern: 254 x 114 mm (10 x 4.5 in)
• Weight: 40 kg (88 lbs)
• CE Certified for trusted quality and compliance

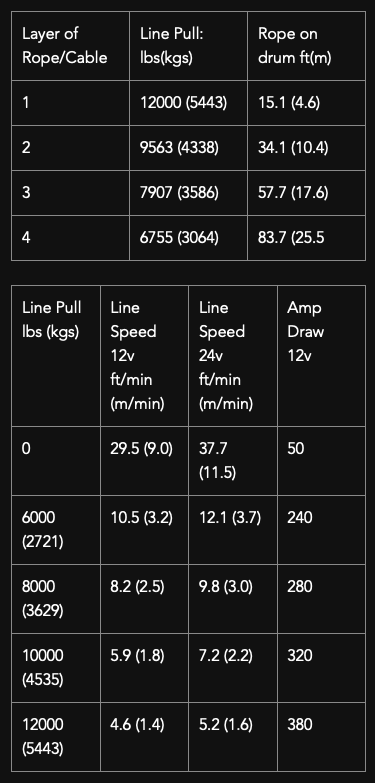

Performance by Cable Layer:

• 1st Layer: 12,000 lbs (5,443 kg) – 15.1 ft (4.6 m)
• 2nd Layer: 9,563 lbs (4,338 kg) – 34.1 ft (10.4 m)
• 3rd Layer: 7,907 lbs (3,586 kg) – 57.7 ft (17.6 m)
• 4th Layer: 6,755 lbs (3,064 kg) – 83.7 ft (25.5 m)

Line Speed (12V / 24V):

• No Load: 29.5 / 37.7 ft/min
• At 12,000 lbs: 4.6 / 5.2 ft/min
