INEOS Grenadier Gearbox + Transfer Case + Fuel Pump Guard

Serious Underbody Protection Without the Weight Penalty

The gearbox, transfer case and exposed fuel pump underneath your Grenadier are some of the most vulnerable — and expensive — components on the vehicle. One badly placed rock strike can ruin a trip very quickly.

That’s exactly why we engineered this guard system.

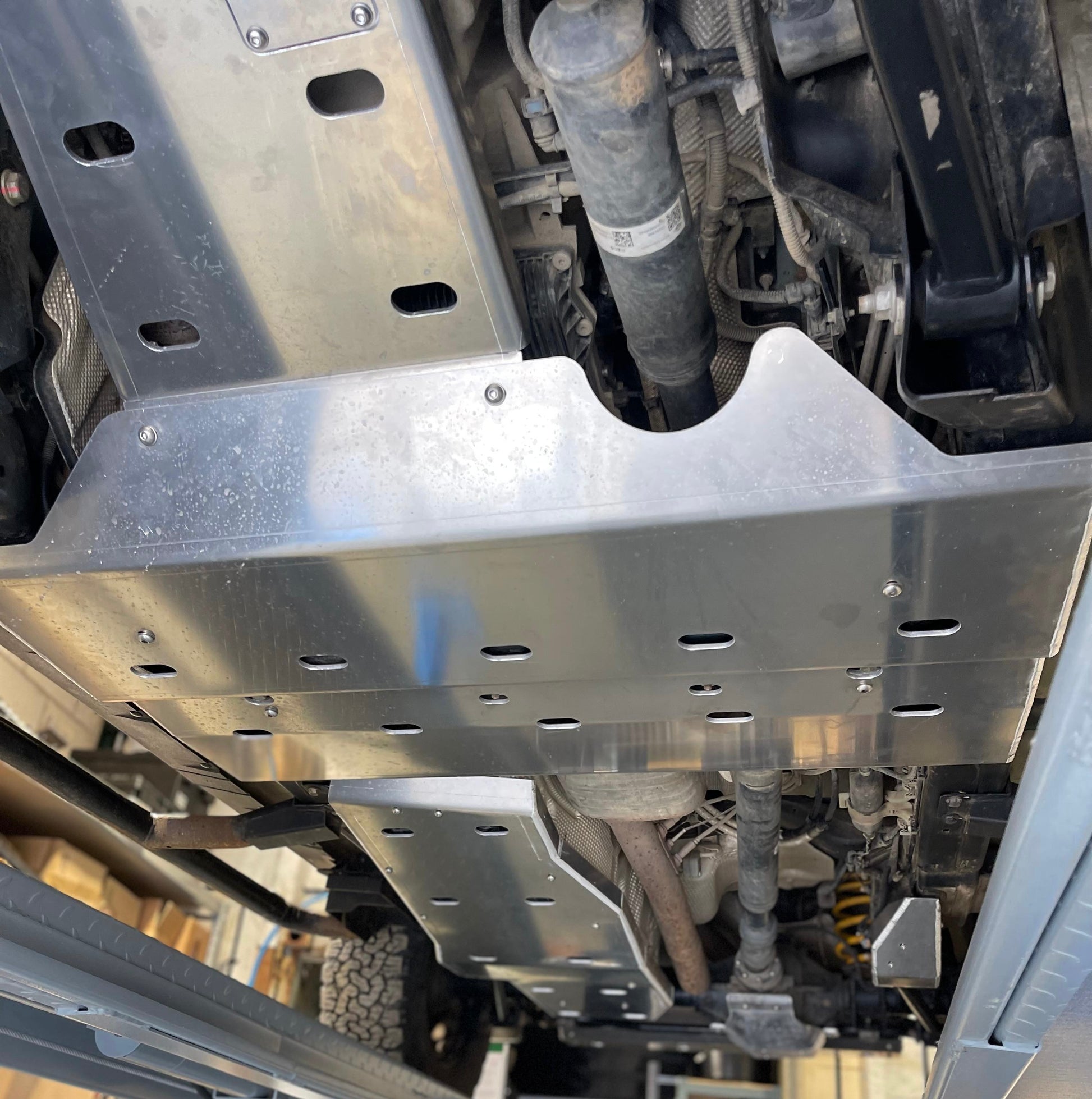

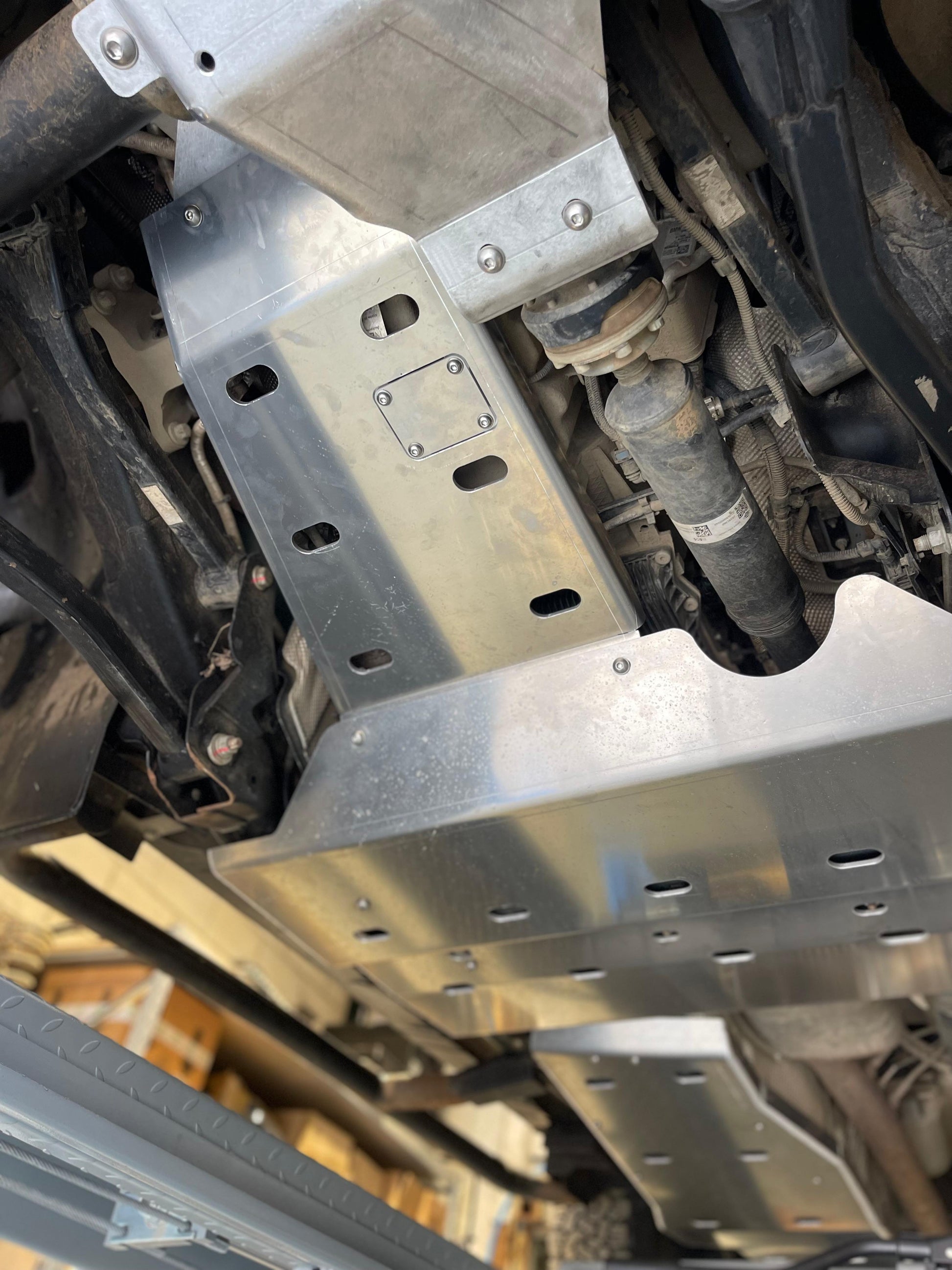

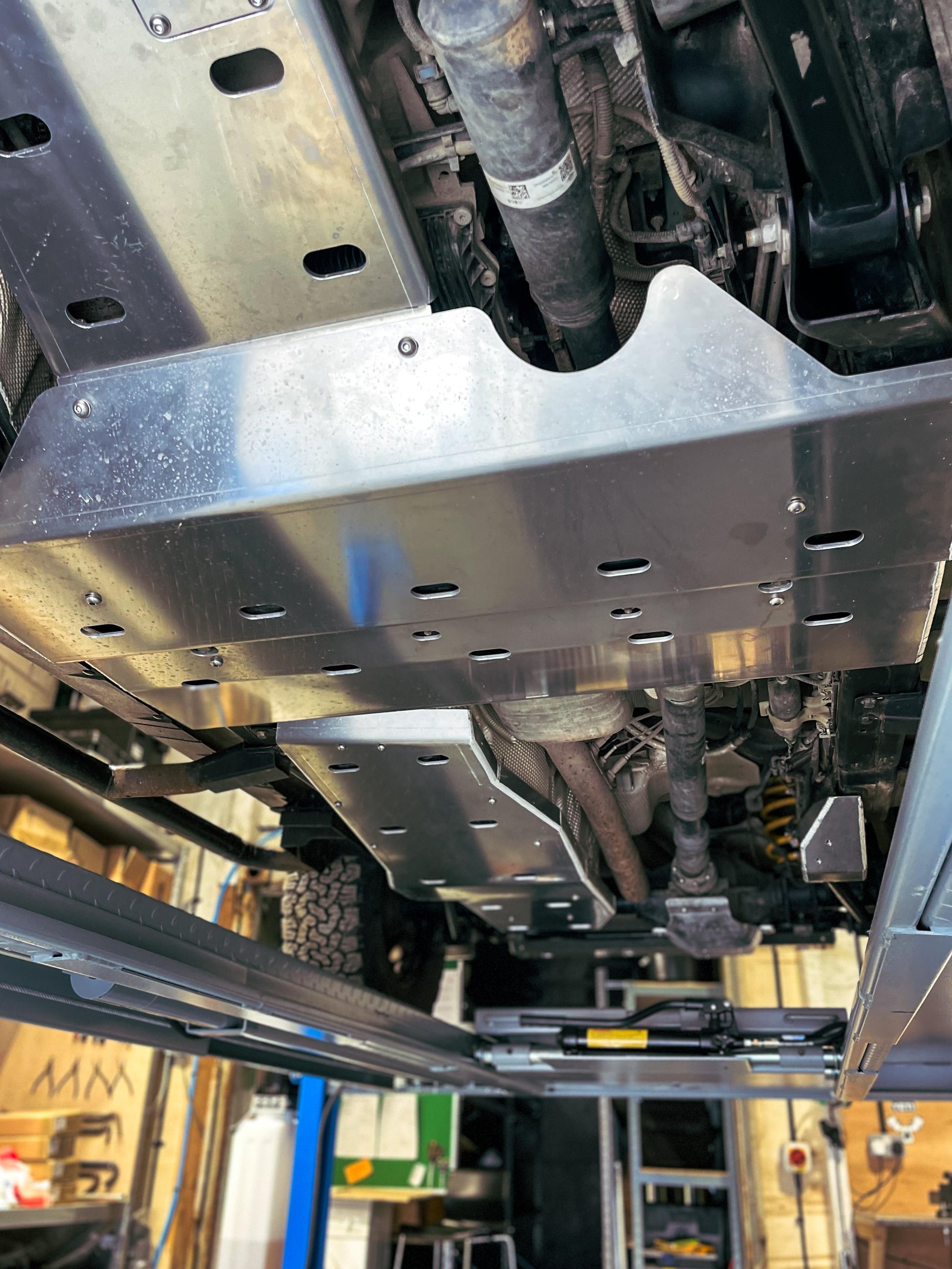

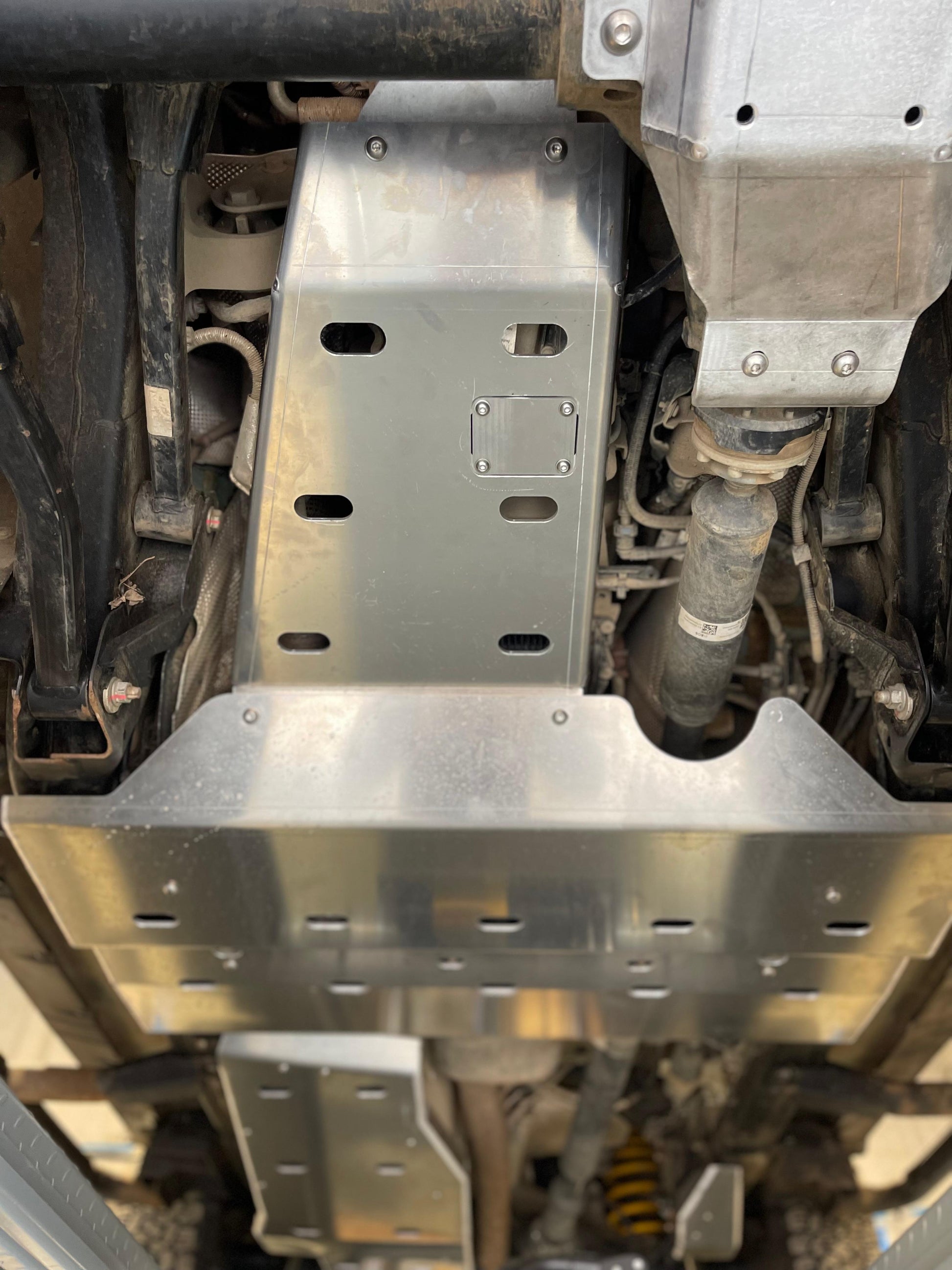

Designed and manufactured in the UK to ORE’s usual high standards, this heavy-duty underbody protection system shields the ZF 8HP automatic gearbox, Tremec transfer case and exposed fuel pump area from impacts, ruts, rocks, debris and repeated off-road abuse.

But unlike traditional heavy stainless guards, this system uses aircraft-grade Duralumin alloy construction to deliver exceptional impact resistance without adding unnecessary weight underneath the vehicle.

Because there’s no point protecting your Grenadier by turning it into a tank.



---



Full Width Protection Where It Actually Matters

Unlike many guards currently on the market, the ORE system is designed to extend fully outward towards the chassis rails rather than simply mounting to the edges and leaving critical subframe and chassis areas exposed.

Many alternative designs only protect the centre section, leaving the surrounding subframe vulnerable to repeated impacts and damage when crossing sharp rocks, ledges and aggressive terrain.

The result?

The guard survives — but the exposed chassis and supporting structure takes the hit instead.

The ORE design approach is different.

By extending protection properly across vulnerable underside areas and integrating additional support structures where required, the system is designed to help shield not only the drivetrain components themselves, but also the surrounding structural areas that often take a battering during serious off-road use.

Because proper underbody protection should protect the whole impact zone — not just the middle of it.



---



Additional Fuel Pump Protection

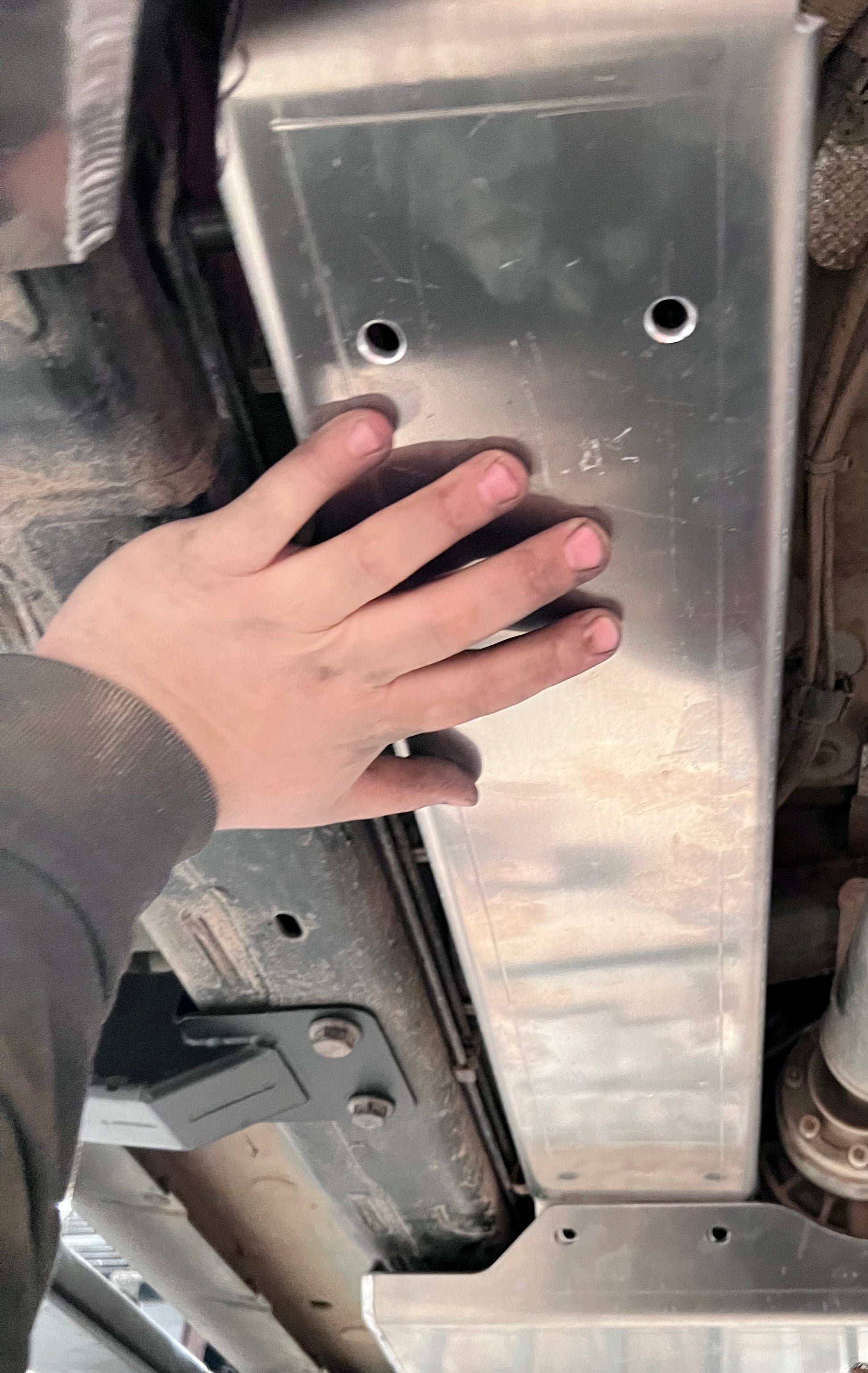

This kit also includes an integrated fuel pump protection guard designed specifically to shield the exposed fuel pump area located between the chassis rail and prop shaft.

The system mounts directly from the main guard and incorporates an additional chassis support bracket paired with a dedicated 6mm Duralumin protection plate for added rigidity and impact resistance in this particularly vulnerable area.

A small detail.
Until you land on it.



---



Engineered Around Real-World Off-Road Use

This isn’t a showroom accessory designed for social media photos.

Our guards have been tested daily for over 13 months by Grathwaite Adventure on a punishing professional off-road training course used by BORDA instructors, mountain rescue driver training teams and specialist off-road operators.

That means repeated impacts.
Repeated abuse.
Repeated recovery work.

Developed through real-world punishment — not theory.



---



Why ORE Uses Aircraft-Grade Duralumin Construction

Most underbody protection follows one of two routes:

• lightweight but soft standard aluminium,

• or extremely heavy stainless steel.

We wanted neither.

That’s why ORE uses aircraft-grade Duralumin alloy — a high-strength aerospace-derived material originally developed for applications where strength, durability and low weight are critical.

Our Duralumin construction is designed to absorb and distribute impact energy properly while maintaining an exceptional strength-to-weight ratio.

The result:

• Superior energy absorption

• Greater impact resistance

• Roughly three times lighter than stainless steel

• Exceptional strength-to-weight performance

• Far stronger than standard aluminium

• Serious protection without excessive vehicle weight

The Grenadier already tips the scales at roughly 2.6–2.8 tonnes before you even start adding roof tents, camping equipment, recovery gear, tools, fuel, spare wheels and all the other kit that tends to come along for the adventure.

Weight matters.

Especially once you start building the vehicle properly for long-distance travel and serious off-road use.

Inspired by aerospace engineering principles, the material is designed to manage impacts rather than simply transferring shock loads directly into the chassis and drivetrain.

Strong where it matters.
Light where it counts.



---



Key Features

• Designed for INEOS Grenadier

• Protects ZF 8HP automatic gearbox and Tremec transfer case

• Additional integrated fuel pump protection system

• Full-width protection extending towards chassis rails

• Designed to help protect vulnerable subframe and chassis edge areas

• Dedicated 6mm Duralumin fuel pump guard

• Main guard manufactured from 6mm aircraft-grade Duralumin alloy

• Additional chassis support bracket for increased rigidity

• Protects exposed fuel pump area between chassis rail and prop shaft

• UK designed and manufactured

• Exceptional strength-to-weight ratio

• Superior impact energy absorption

• Greater impact resistance than standard aluminium

• Roughly three times lighter than stainless steel

• Uses existing factory mounting points and fixings

• No drilling required

• Precision-engineered mounting system

• Designed for serious off-road use

• Tested daily in professional off-road training environments

• Finished in our highly durable OREsome coating system

• Ask us about available OREsome coating colour options

• Finished to ORE’s usual high standards



---



Built for Vehicles That Actually Get Used

Anyone can bolt heavy metal underneath a 4x4.

Proper engineering is about protecting critical components without compromising the way the vehicle drives, handles, or performs off-road.

That’s the difference.

ORE underbody protection is engineered for Grenadiers that see real terrain, real impacts and real miles.

Not just coffee shop car parks.



---



ORE Standard

Built in Britain.
Tested properly.
Engineered to keep moving.
