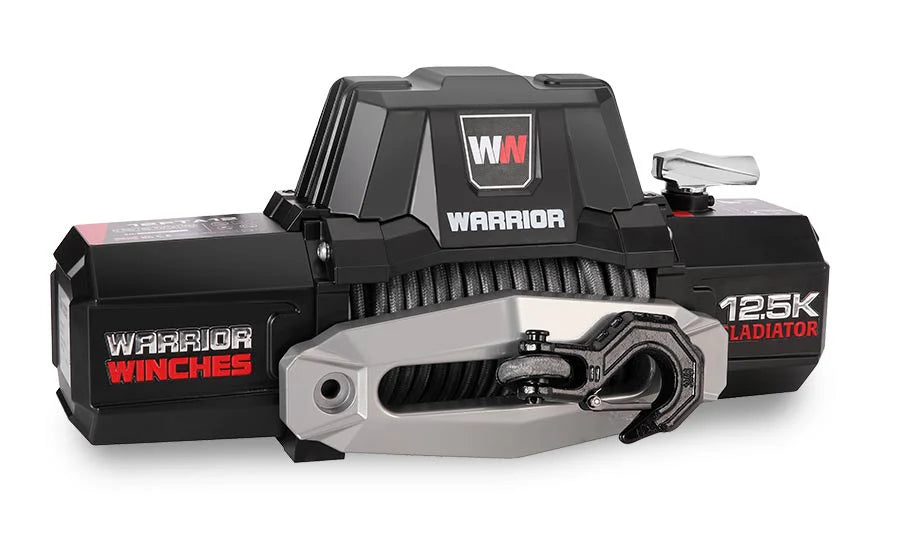

Gladiator F-Type 12500 Electric Winch

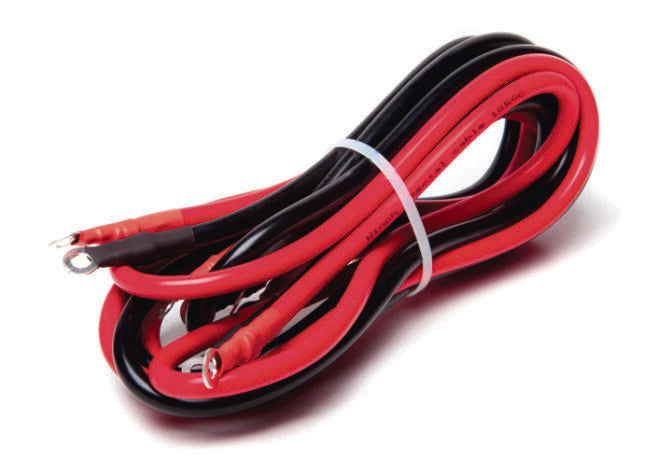

PLEASE NOTE Defender Owners will require longer winch extension leads due to battery location which can ordered using this link: Click here to Order.
All warrior winches offer a limited lifetime warranty on parts and a 3-year warranty on electrical components. For more information click here: Click here for Warranty Info.

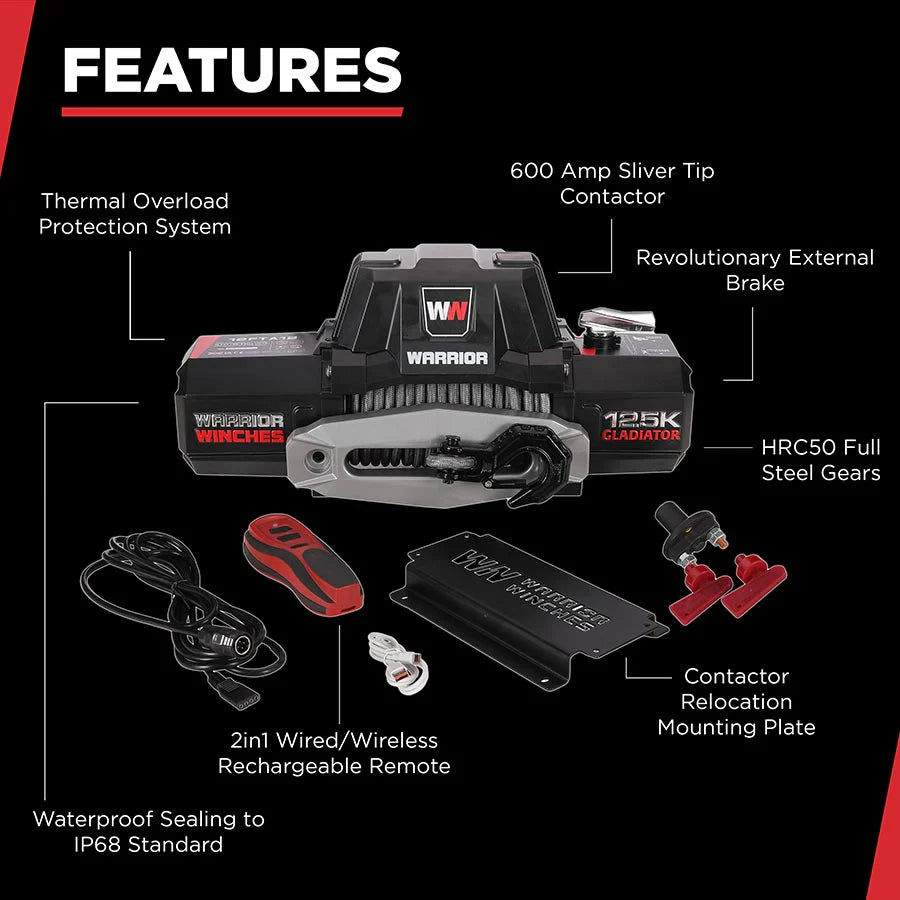

• 2in1 Wired/Wireless Rechargeable Remote for ease of use in any situation. A USB charging cable means you can recharge the remote in your vehicle.
• Thermal Overload Protection System prevents damage to the winch, giving you peace of mind that your winch is protected in extreme use cases
• The motor and geartrain are completely shielded in full metal armour and we have gone the extra step to cover the control pack in sturdy aluminium for maximum protection.
• Warrior’s high powered motor and geartrain delivers high performance and powerful pulling capacity whilst maintaining an ultra low amp draw so you don’t drain your battery.

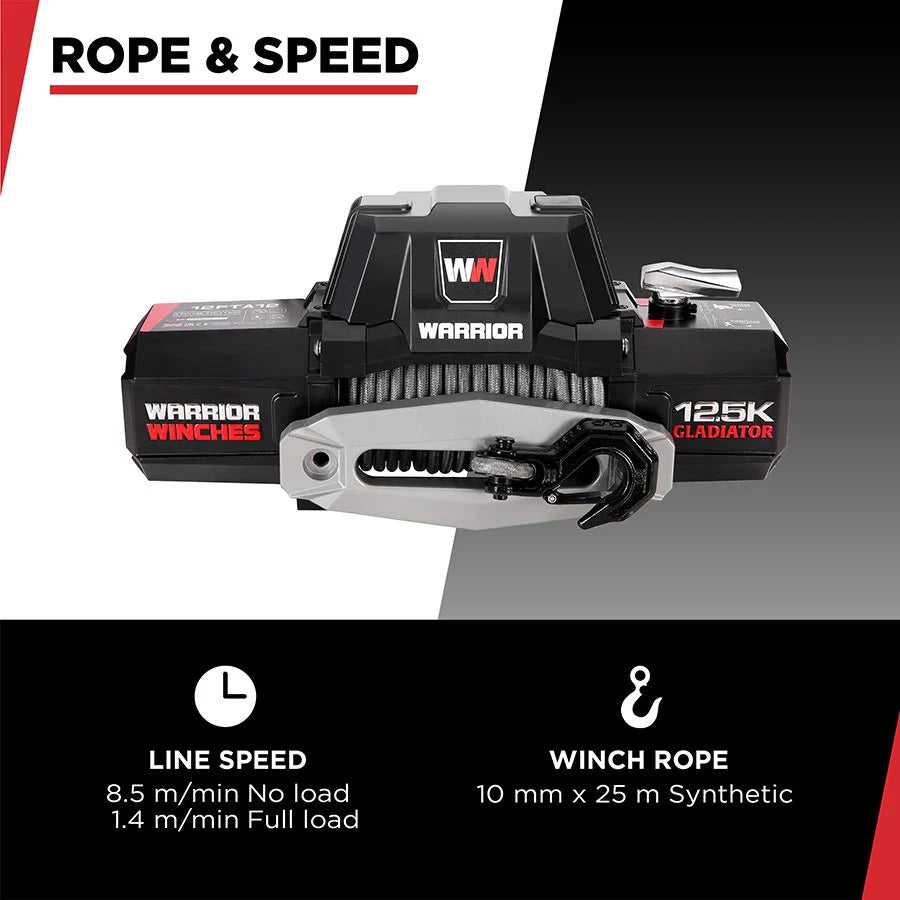

• Impressive no load line speed of 27.8ft/min (8.5m/min) is fastest in this segment.
• Comes with our Armortek Extreme Synthetic Winch Rope  – the most advanced in the range, no other 4×4 winch range offers a comparable sheathed synthetic winch rope.
• 600 amp Silver Tip Contactor provides greater electrical efficiency and withstands higher temperatures, whilst a low corrosive Silver Copper Motor with Copper Brush Holders ensures a longer motor life.
• HRC50 Full Steel Gears provide superior durability and long life.
• Extensive Waterproof Sealing to the IP68 Standard keeps water and the elements out.
• Our Revolutionary External Brake Design means less heat and stress is transferred to your winch rope, prolonging it’s life, giving you maximum return and value for money.

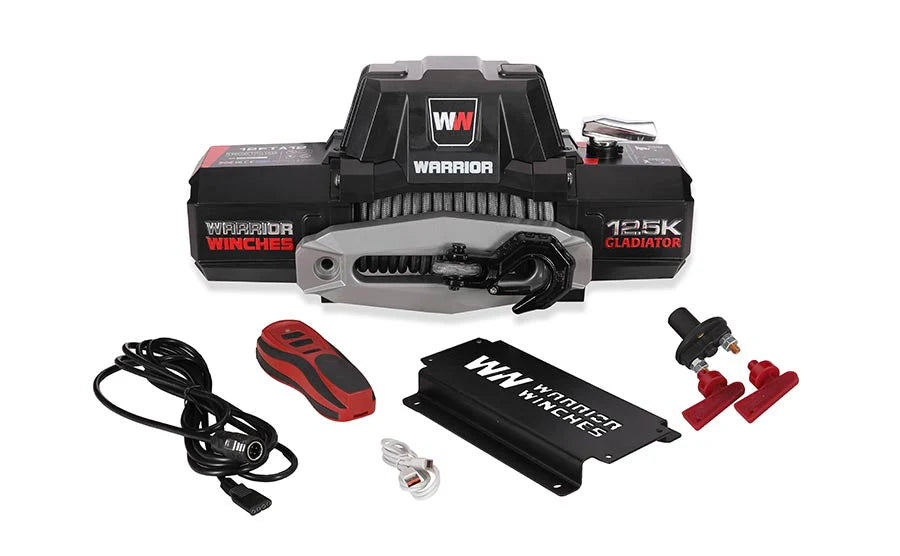

• Included with your winch is a durable control pack mounting plate, so there’s no need to buy an extra relocation kit.
• Durable aluminium cover, outdoor anti-corrosion powder coating and stainless steel mounting hardware provide an exceptional corrosion resistance of over 480 hours of salt-spray-testing.
• Large Steel Winch Drum reduces wear and tear on the Armortek Extreme Synthetic Rope.
• Stainless steel mounting hardware, extensive sealing  and durable outdoor anti-corrosion powder coating provides superior corrosion resistance.

Features

• Rated Line Pull: 10,000 lbs (4,535 kg)
• Motor Type: 12V ,Input: 4.6 kW / 6.1 hp ,Output: 2.2 kW / 3.0 hp
• Gear Ratio: 196:1
• Clutch: Manual
• Braking Action: Patented Ratchet
• Drum Size: Ø2.48” x 8.54” (Ø63 mm x 217 mm)
• Cable Material: Synthetic
• Cable Size: Ø0.35” x 82’ (Ø9 mm x 25 m)
• Mounting Pattern: 10” x 4.5” (254 mm x 114.3 mm) (4-M10)

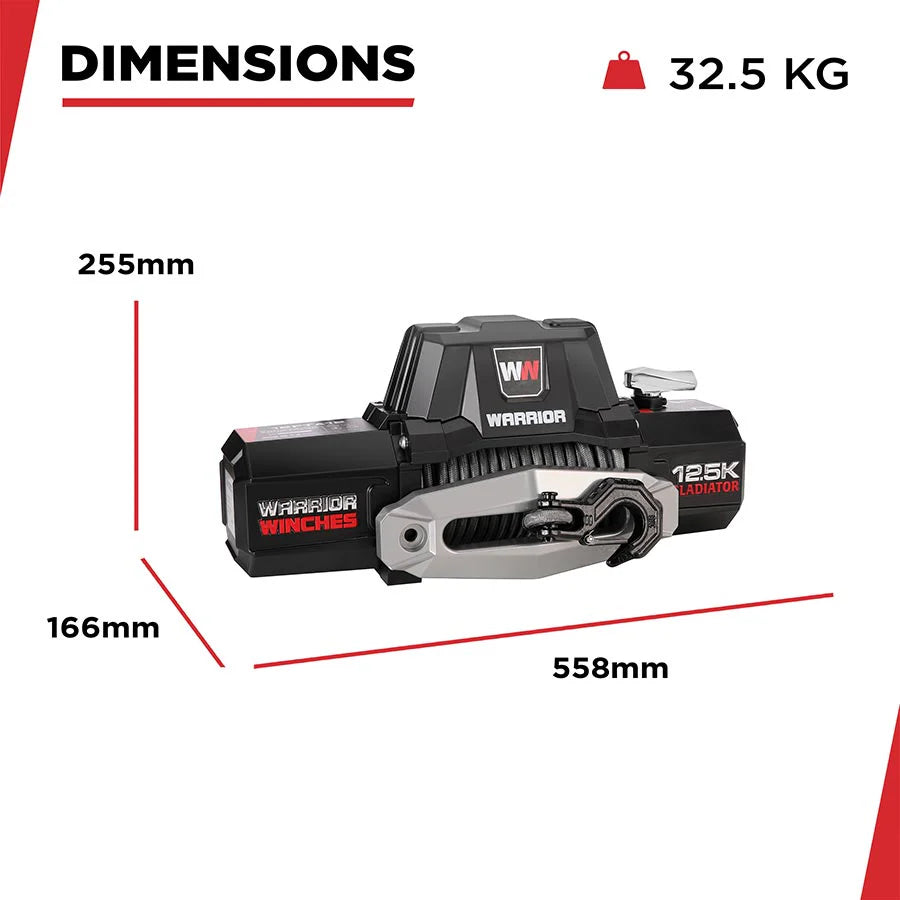

• Dimensions: 22” x 6.5” x 10” (558 mm x 166 mm x 255 mm)
• Net Weight: 70.5 lbs (32 kg)
• Certification: CE
