Mobile Centre complete plug and play kit for JW Speaker EVO X 7” LED Headlight Kit for Land Rover Defender (5-in-1 LED System)

Overview - (Stock for Evo X landing in UK June) Pair

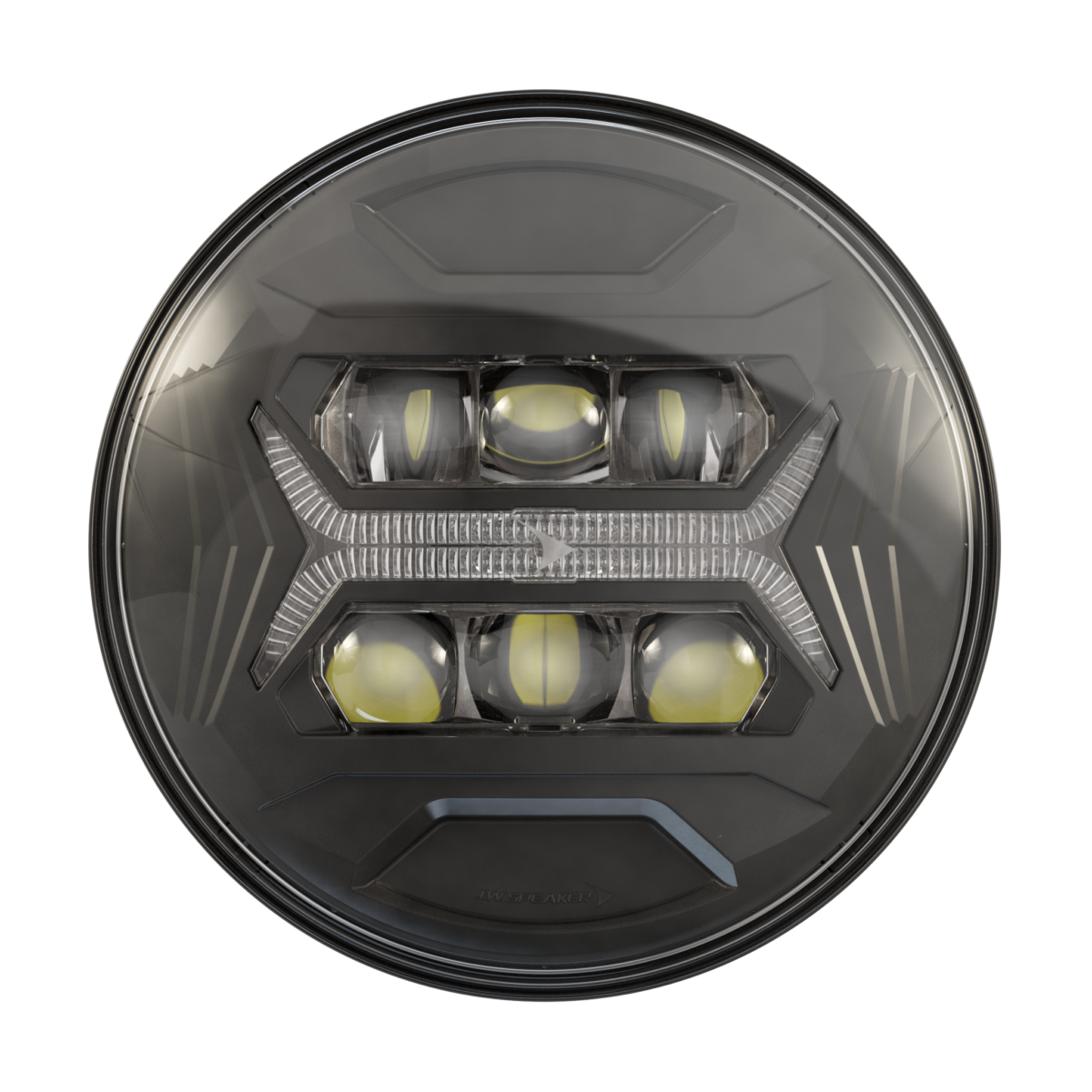

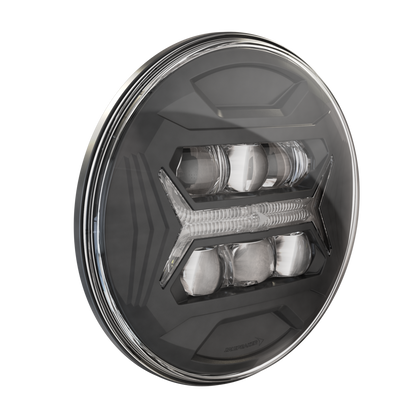

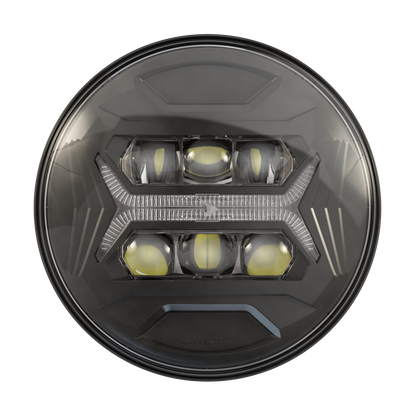

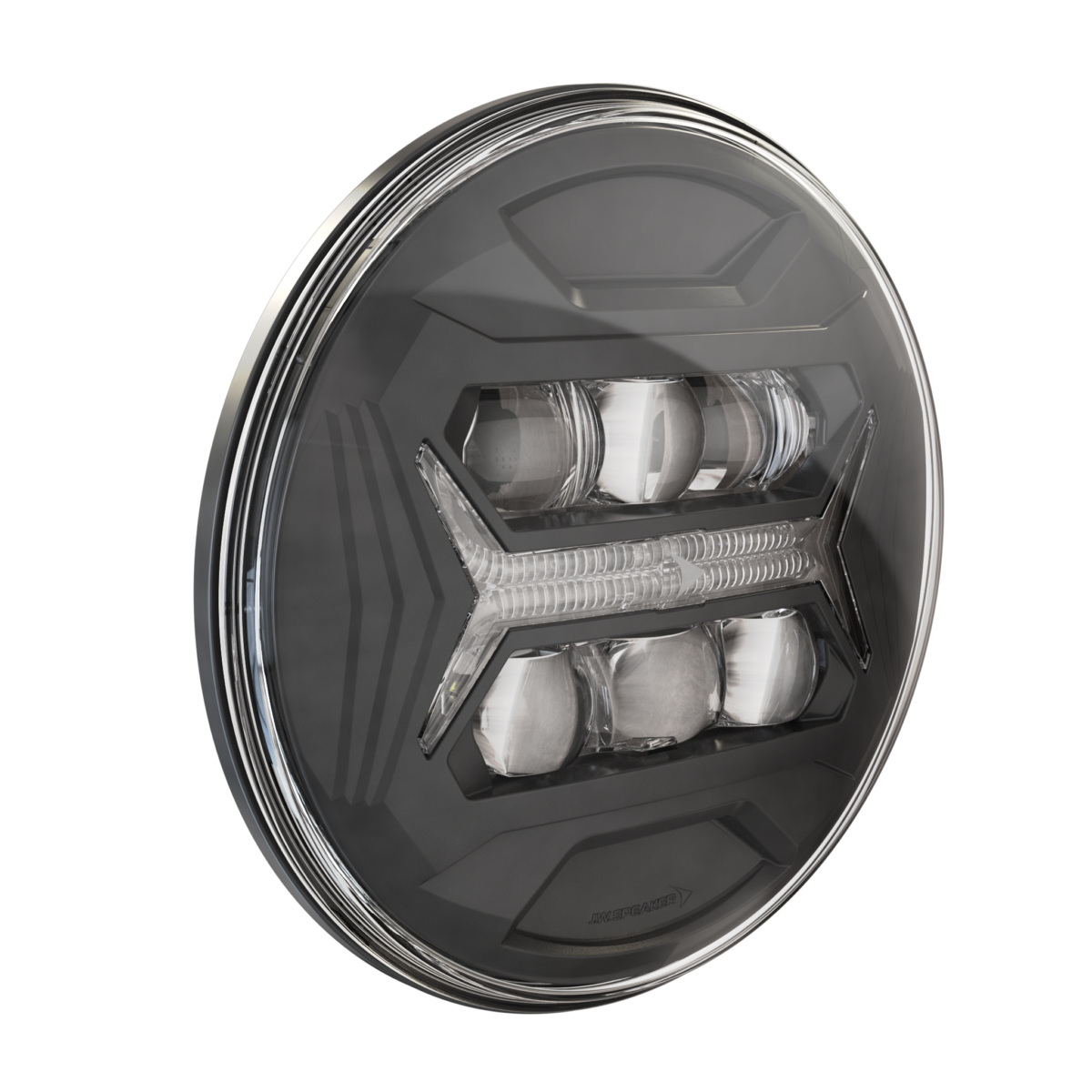

The EVO X is JW Speaker’s latest 7” LED headlight, designed to deliver maximum performance, durability, and functionality in a single unit. Built as a 5-in-1 lighting system, it combines high beam, low beam, DRL, front position light, and indicator into one compact upgrade.

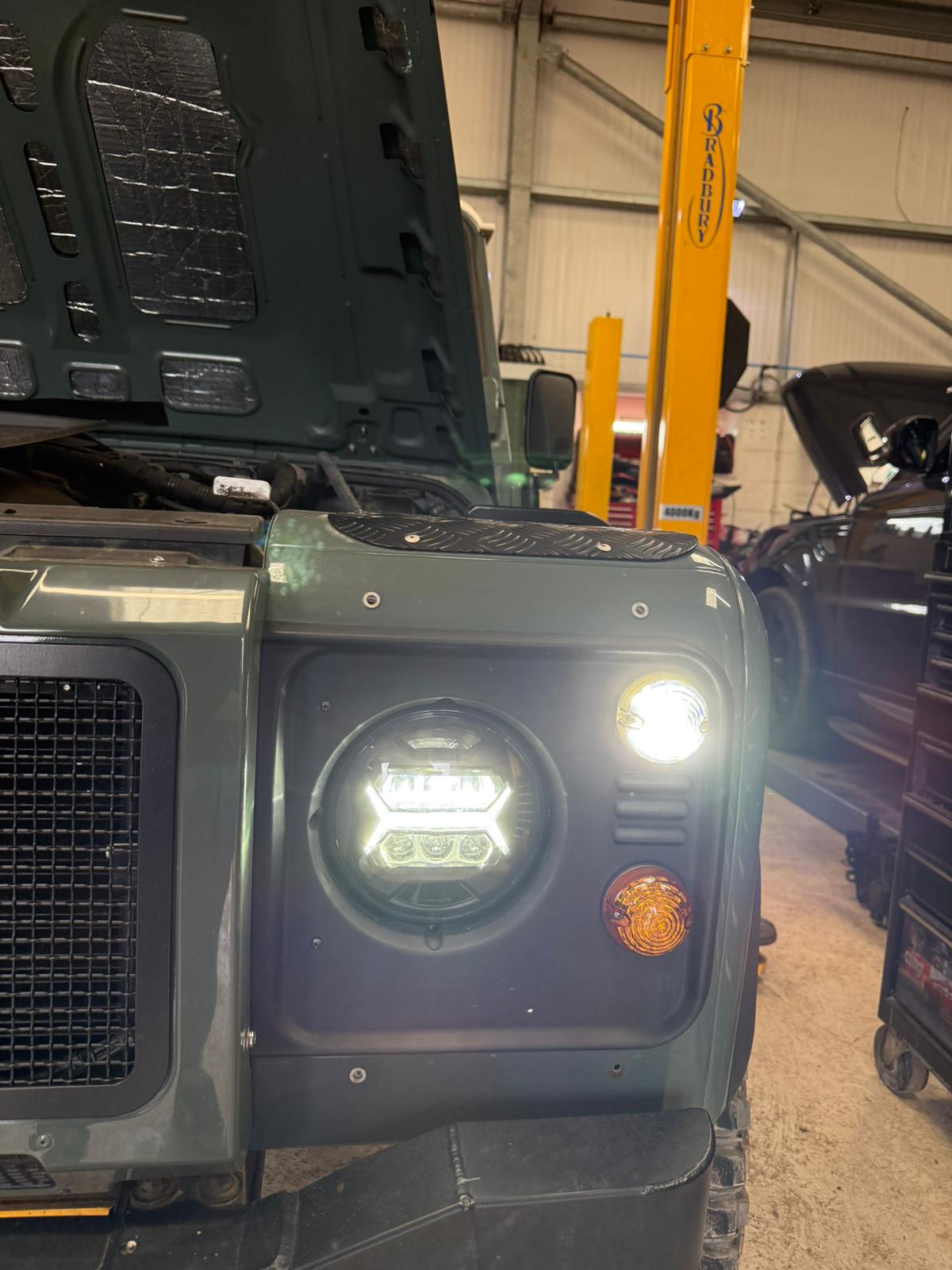

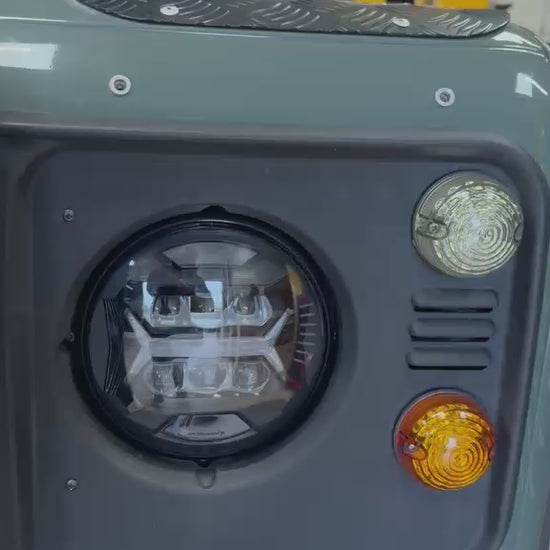

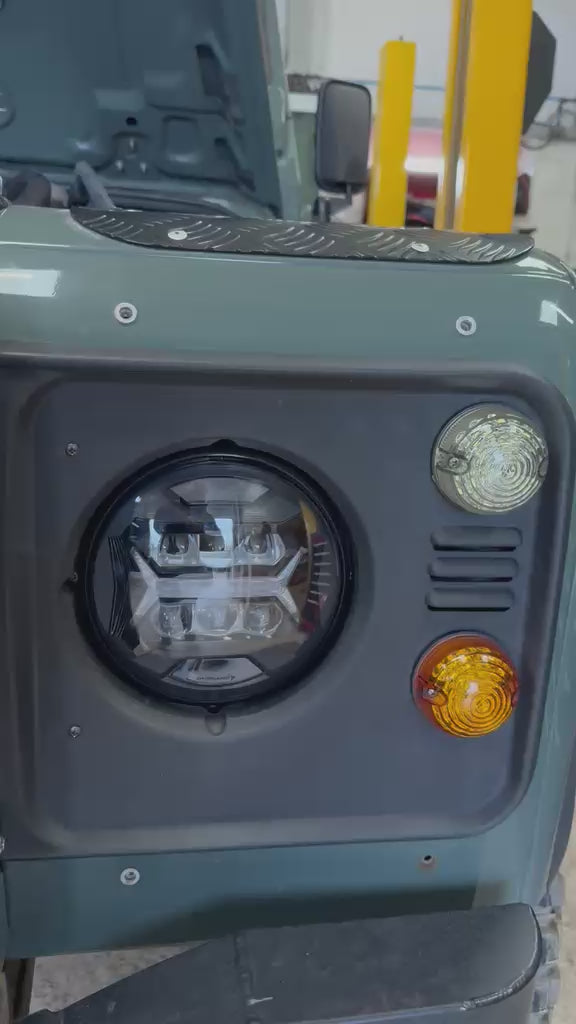

Mobile Centre once again takes the EVO X and creates a plug & play, high-performance direct replacement LED headlight upgrade specifically for all models of Land Rover Defender.

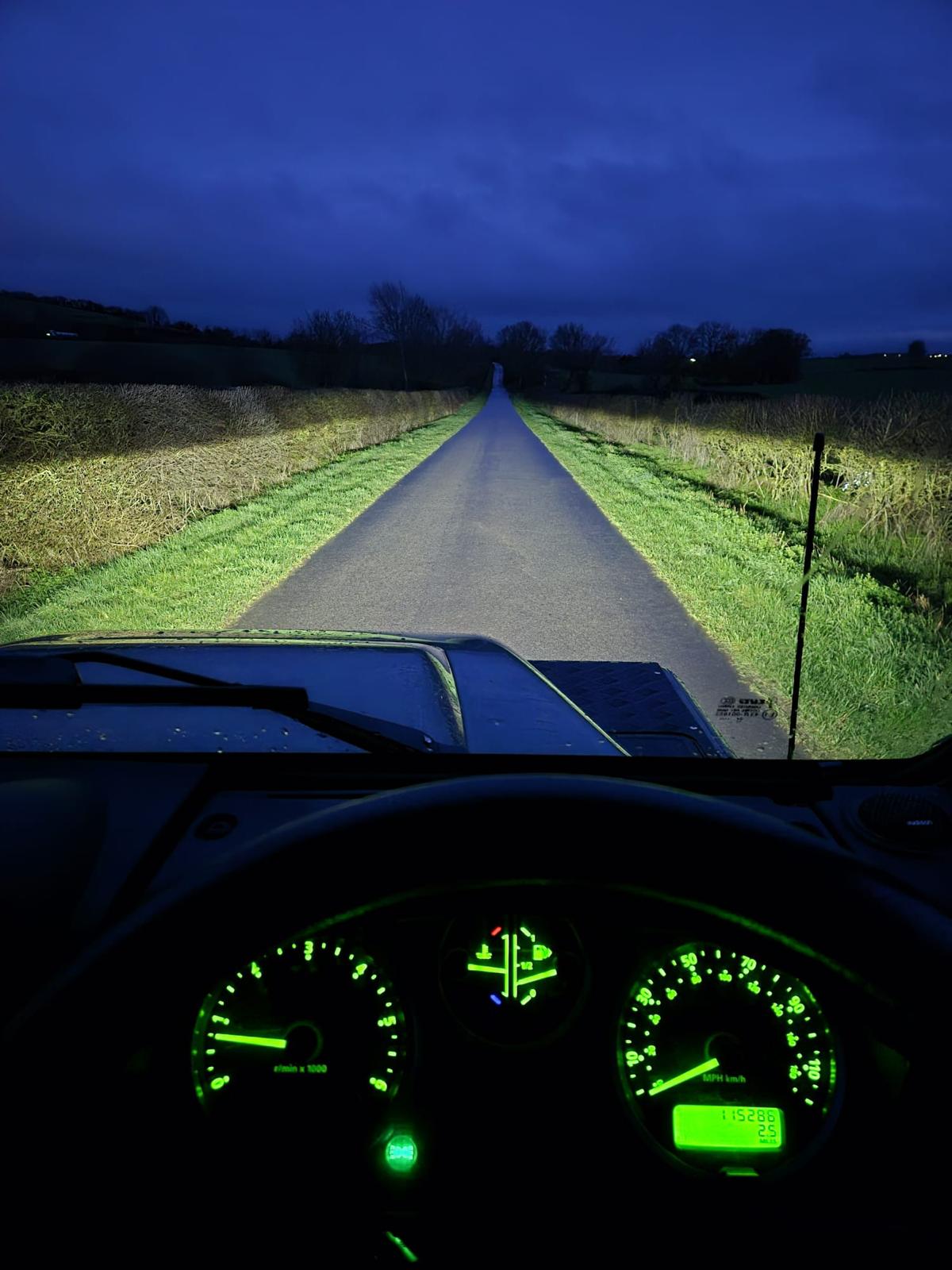

With advanced optics and high-output LEDs, the EVO X provides strong long-range visibility while maintaining a wide, controlled beam pattern for real-world driving conditions.

Fully road legal (tested by the VCA in Bristol, England) and E-marked, allowing your vehicle to pass any inspection / MOT test with ease.

Backed by an industry-leading 5 year warranty.

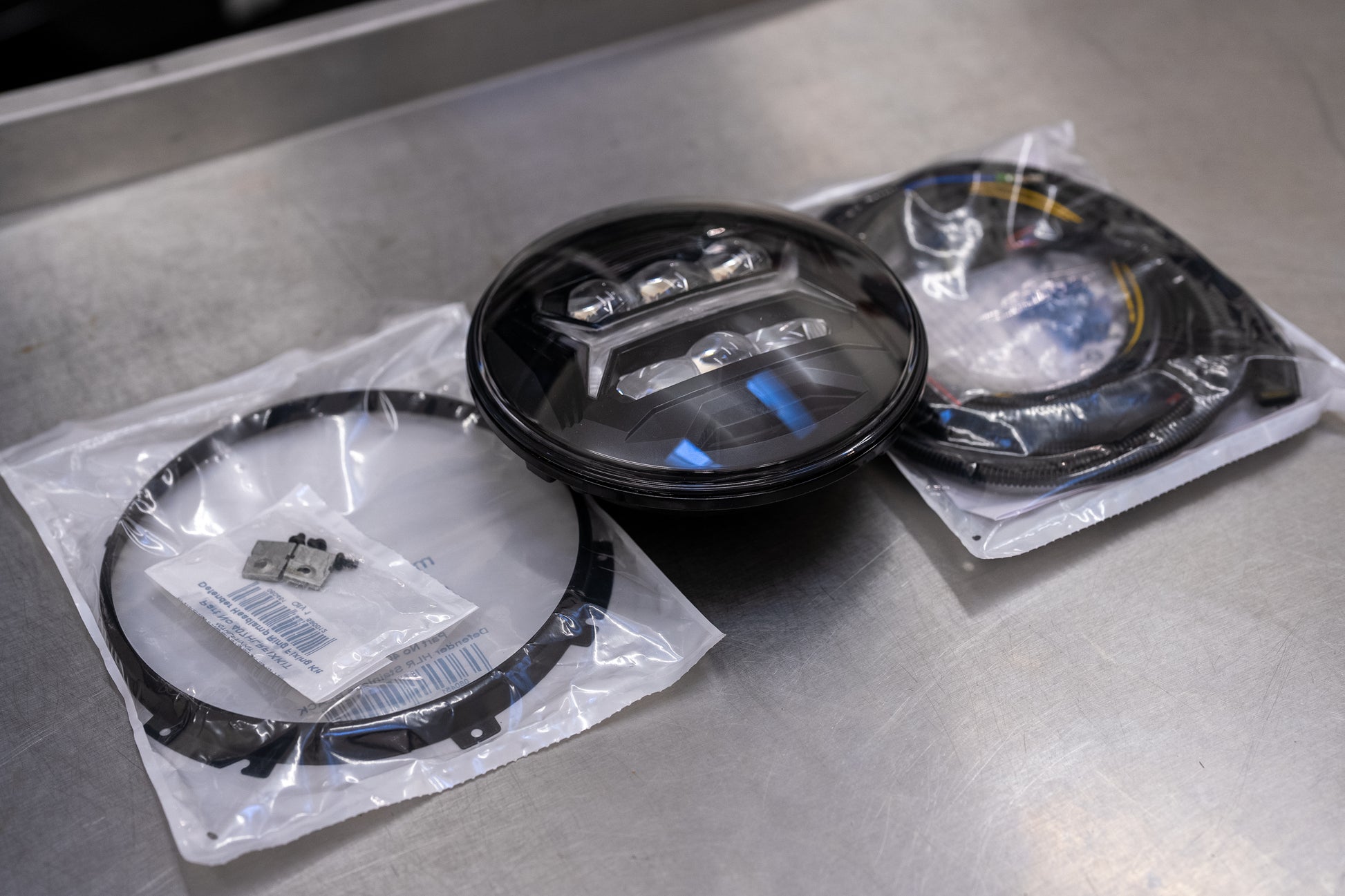

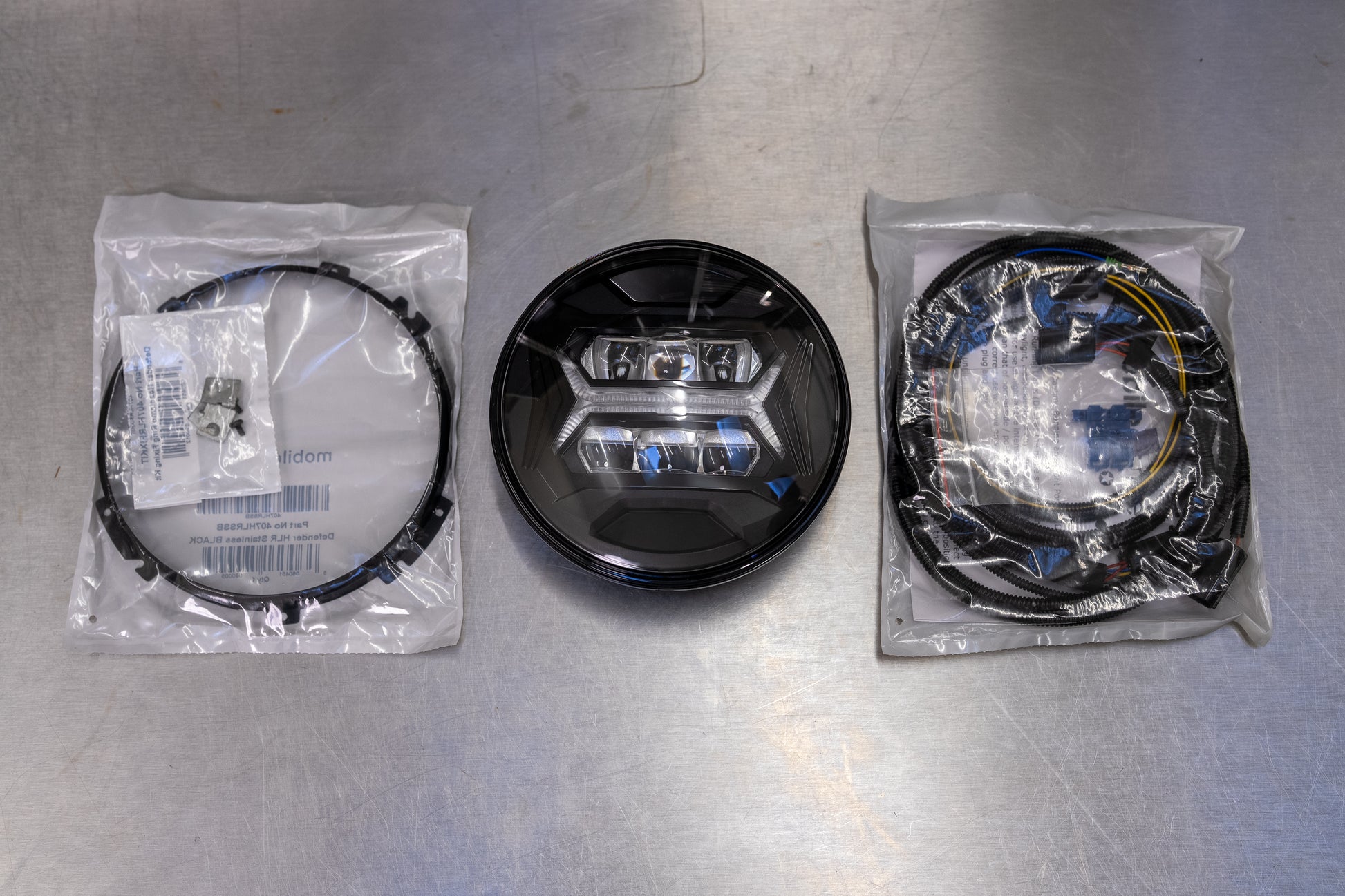

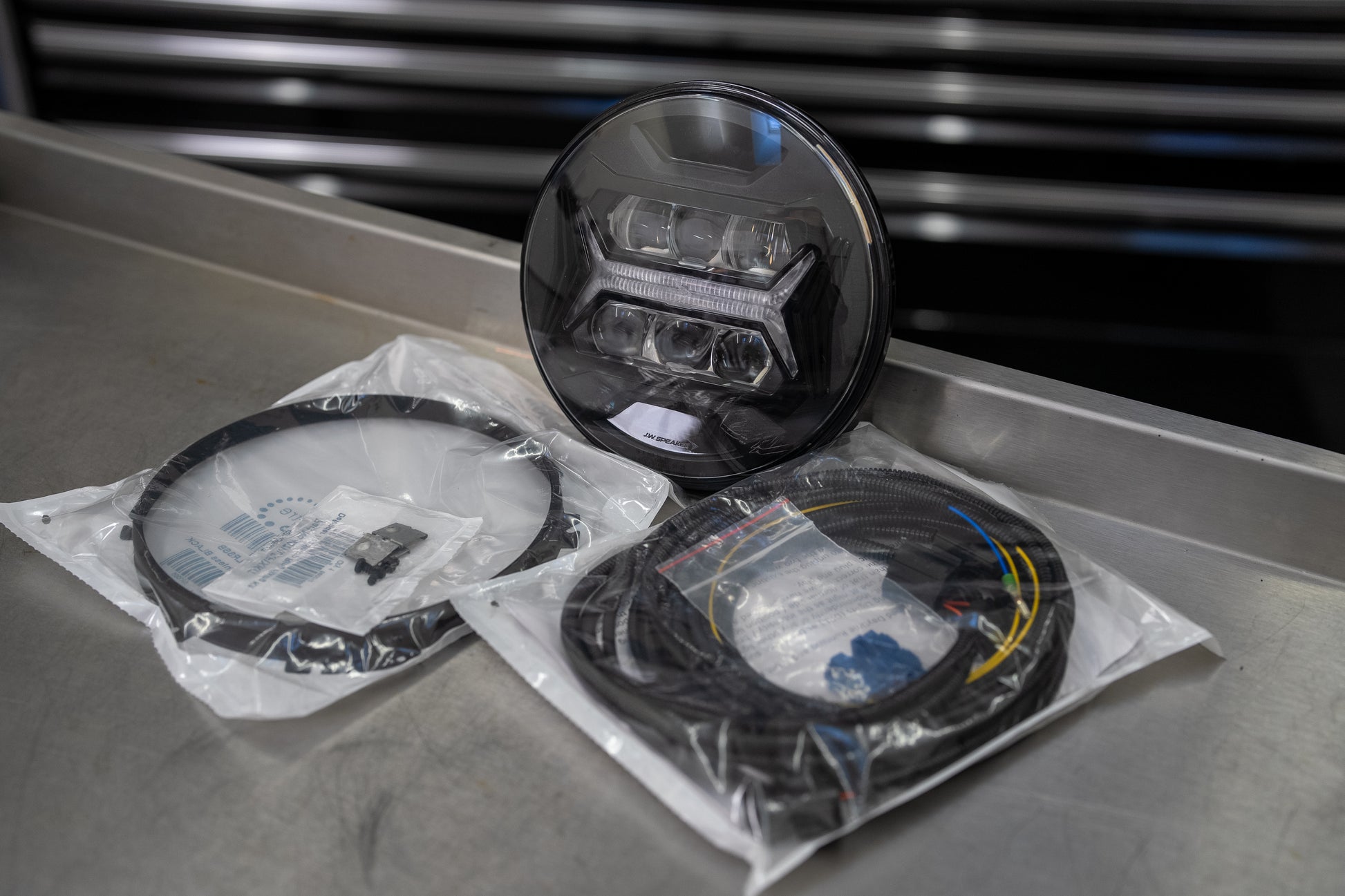

What’s Included

• Pair of JW Speaker EVO X 7” LED headlights
• Mobile Centre Defender-specific wiring kit
• Integrated DRL, position light, and indicator functionality
• Powder-coated black stainless steel bezels
• Replacement fitting hardware

Key Features

• 5-in-1 Functionality
  High beam, low beam, DRL, position light, and indicator integrated
• ECE & DOT Compliant
  Road legal with correct beam pattern (RHD or LHD options)
• 12–24V Compatibility
  Suitable for both 12V and 24V vehicle systems
• High Output LED Performance
  Optimised beam pattern for distance and spread
• Sealed & Durable Construction
  Built to withstand harsh environments

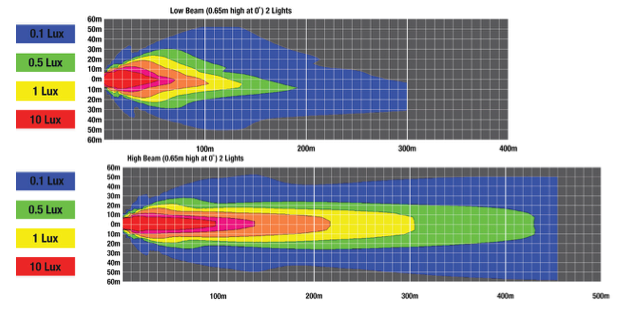

Photometric Performance

• Raw Lumens:
• High Beam: 3,740 lm
• Low Beam: 2,330 lm
• Effective Lumens:
• High Beam: 1,450 lm
• Low Beam: 755 lm
• Candela Output:
• 63,000 cd
• Colour Temperature:
• 5700K (crisp white light)

Beam Functions

• High Beam (ECE) – Long-range projection
• Low Beam (ECE) – Controlled, glare-free beam pattern
• DRL – Daytime running visibility
• Front Position Light – Marker/side light function

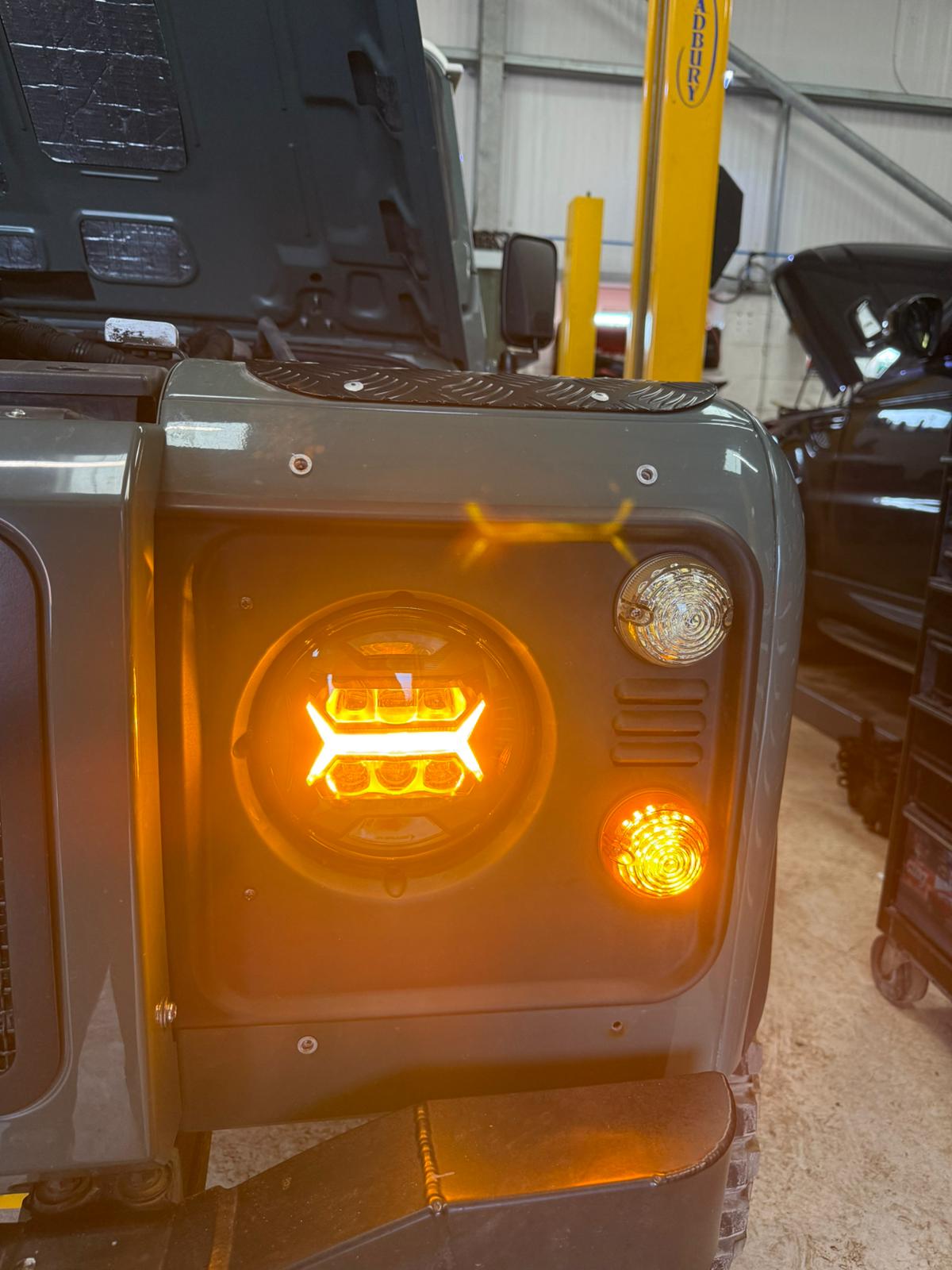

• Front Indicator – Integrated turn signal

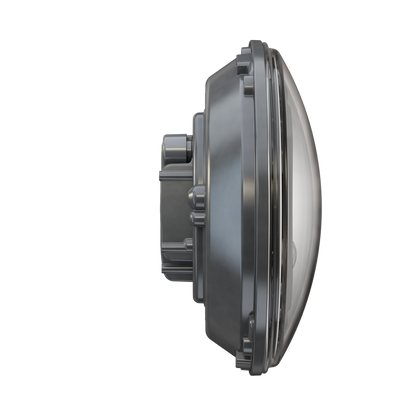

Construction & Build

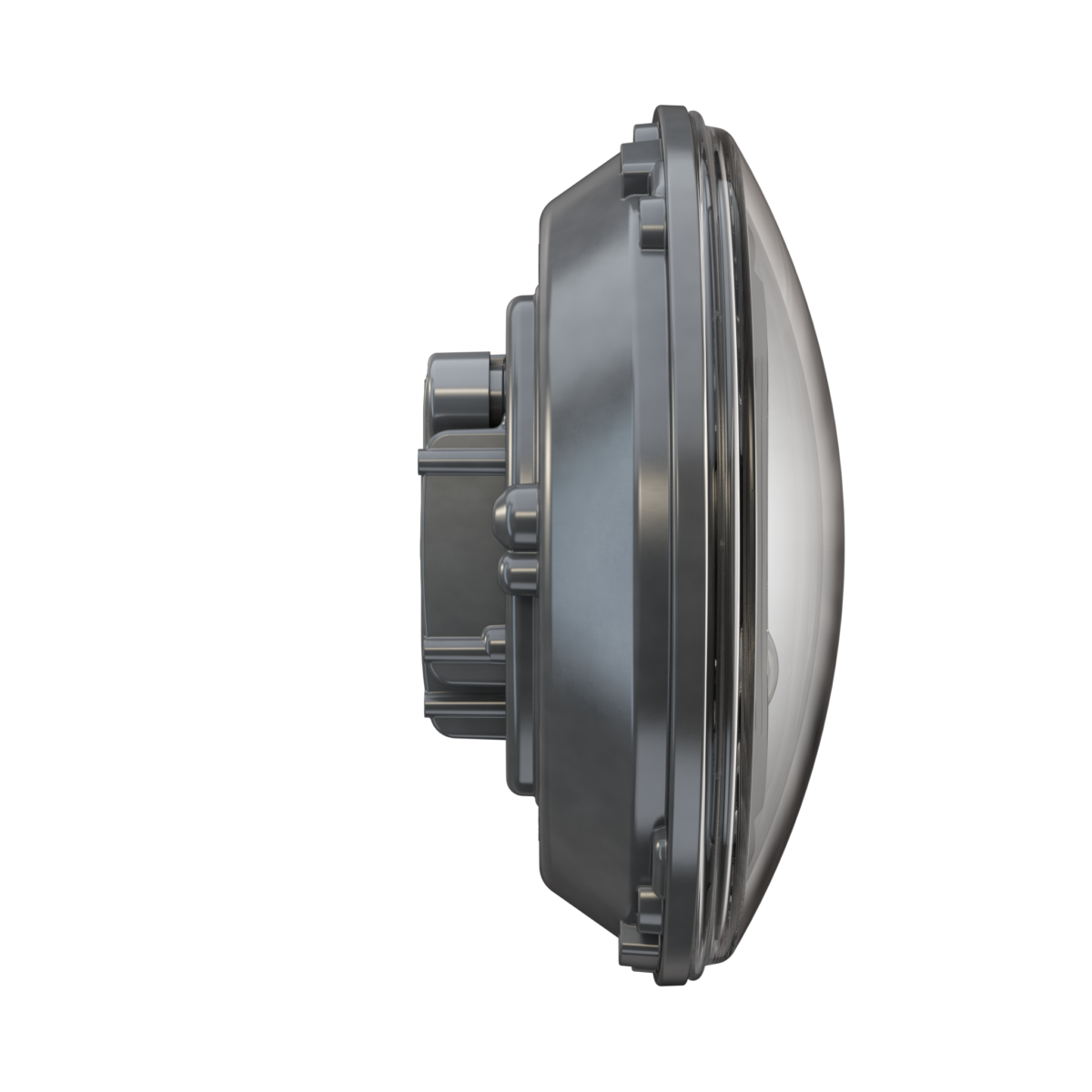

• Shape: 7” Round (PAR56 / 2D1 standard)
• Dimensions:
• Height: 177.2 mm
• Width: 177.2 mm
• Depth: 84.35 mm

Materials:

• Lens: Hard-coated polycarbonate
• Housing: Polycarbonate
• Bezel: Black

Environmental Rating:

• Operating Temperature: -40°C to +65°C
• IP67 & IP69K rated (dustproof + high-pressure water resistant)

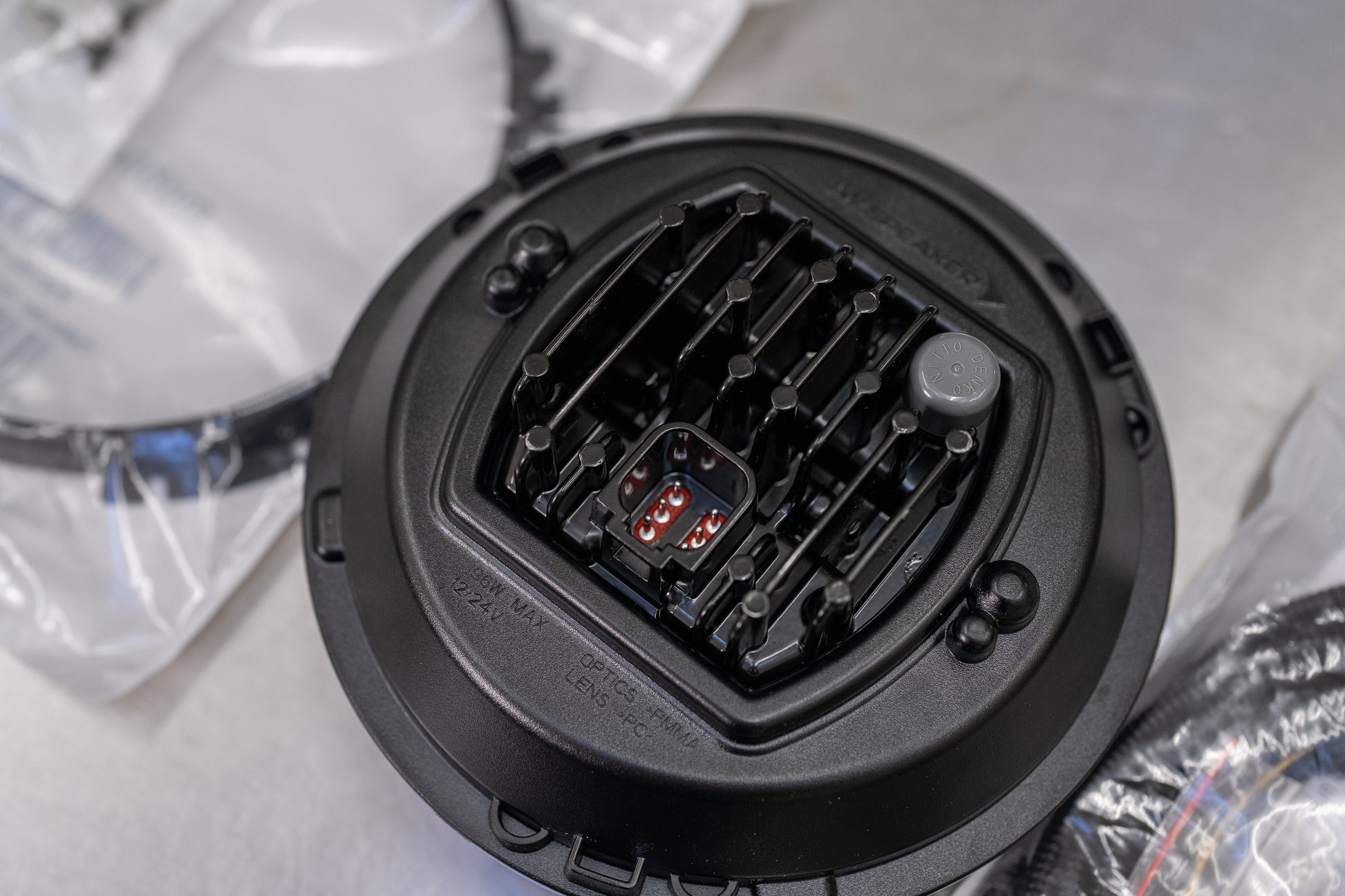

Electrical Specifications

• Input Voltage: 12–24V DC
• Operating Range: 9–32V DC

Current Draw:

Compliance

• ECE: Reg 10, 148, 149
• DOT / FMVSS 108: US road compliance
• SAE: J1383, J2087, J222

Summary

The EVO X is a high-output, multi-function LED headlight kit that combines performance, compliance, and durability in one unit. With Mobile Centre’s Defender-specific integration, it becomes a true plug & play upgrade—delivering modern functionality, improved visibility, and full road legality.
