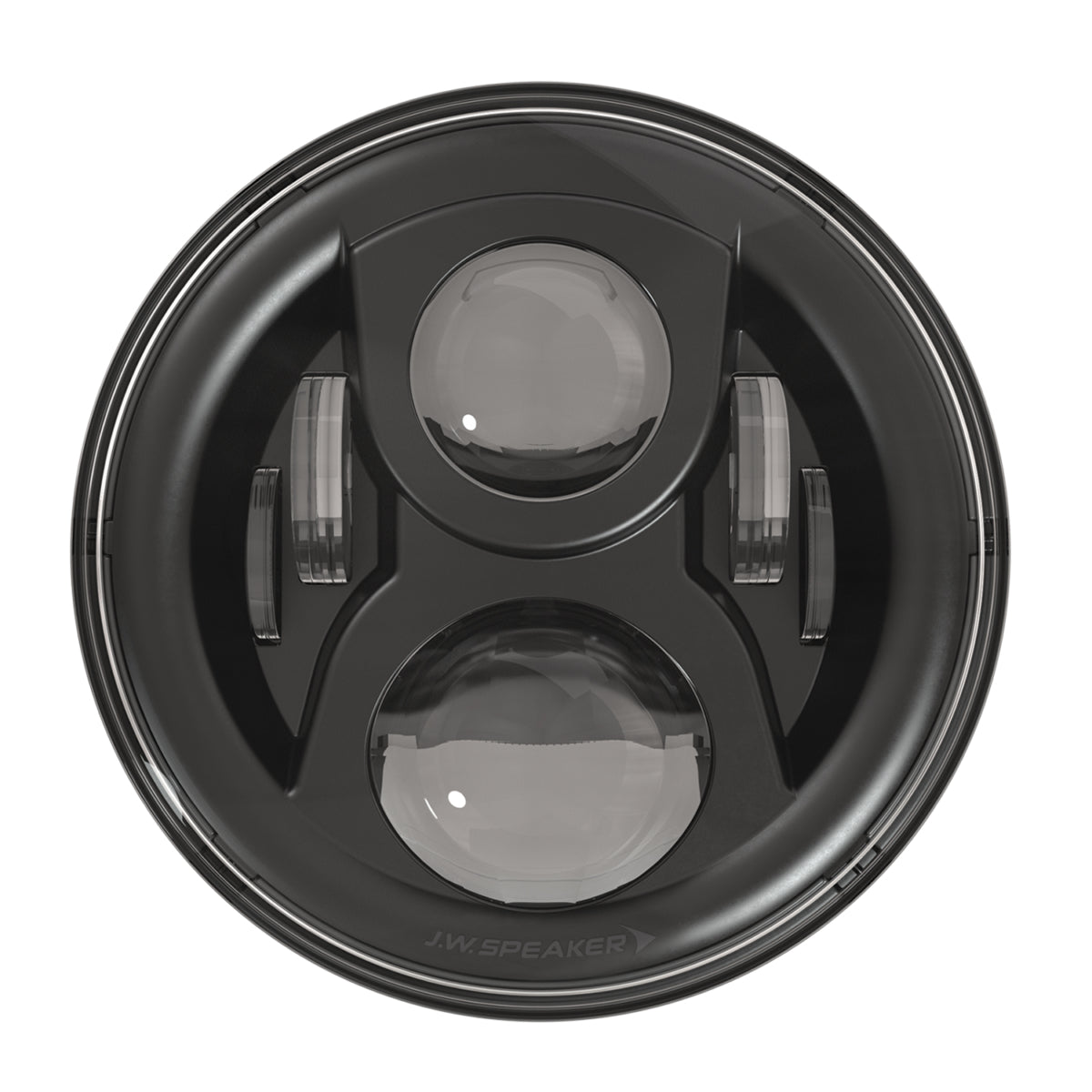

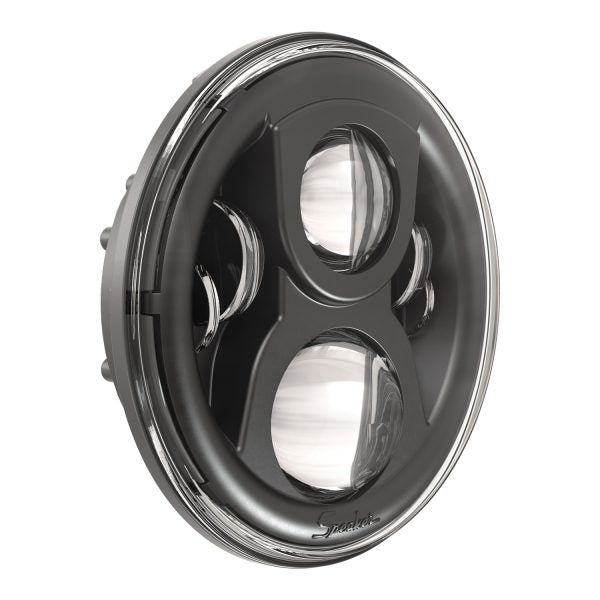

JW Speaker 8700 EVO 2 PRO Dual-Burn® LED Headlight Kit for Land Rover Defender (NON DRL)

Overview

Mobile Centre has developed a high-performance, direct replacement LED headlight upgrade for all Land Rover Defender models. Based on the proven JW Speaker Model 8700 EVO 2 PRO, this kit incorporates Dual-Burn® technology for maximum on-road performance and beam coverage.

Engineered specifically for UK and ECE markets, this headlight is fully homologated for road use and features the correct beam pattern with E-marking on the lens.

The kit is supplied with black powder-coated stainless steel mounting rings, providing a complete installation solution including all required fixings, adjusters, and hardware.

Fully road legal (tested by the VCA in Bristol, England) and E-marked, ensuring compliance for MOT and road use.

Backed by an industry-leading 5 year warranty.

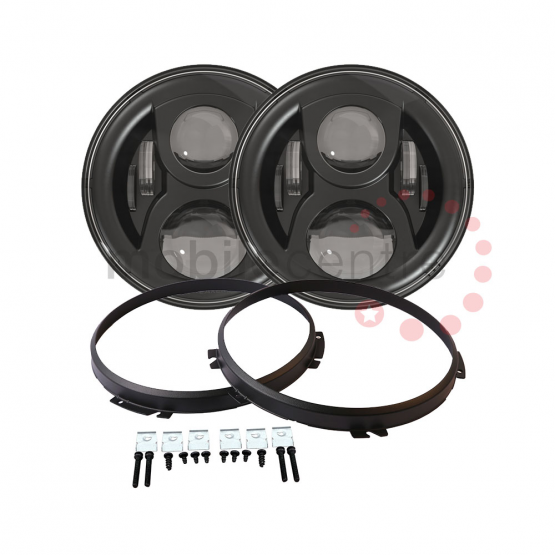

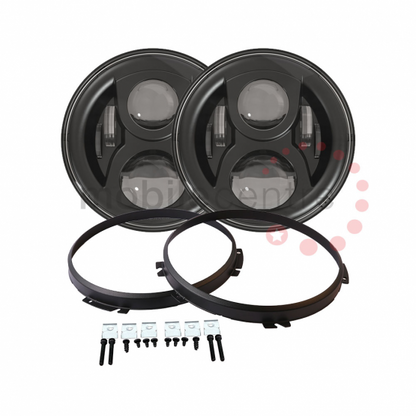

What’s Included

·       Pair of JW Speaker 8700 EVO 2 PRO LED headlights (non DRL)

·       Black powder-coated stainless steel mounting rings

·       Full fixing kit (screws, clips, adjusters)

·       Plug & play wiring with H4 connector

Key Features

·       Dual-Burn® Technology – Combined high + low beam output

·       ComfortLite® Technology – Enhanced beam pattern + usable light

·       Plug & Play Installation – H4 connector for direct Defender compatibility

·       ECE Homologated (Road Legal) – Designed for UK/EU road use

·       High Performance LED Output – Optimised for distance and spread

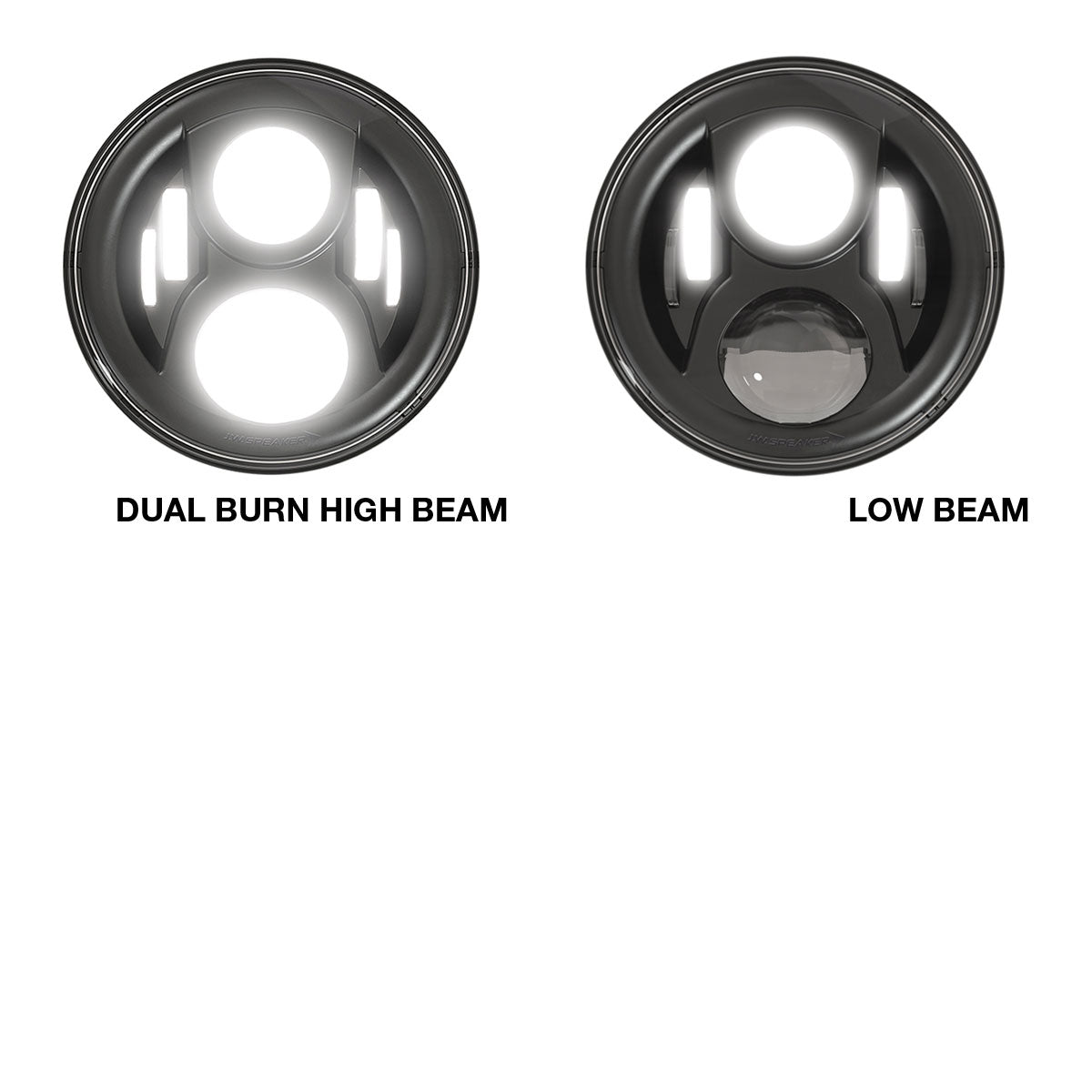

Dual-Burn® Technology

Dual-Burn® activates both high and low beam together when high beam is selected.

How it works:

·       Combines wide near-field visibility (low beam)

·       With strong long-range projection (high beam)

Result:

·       Broader, more complete field of illumination

·       Improved visibility across the full road surface

·       Better awareness of road edges, obstacles, and terrain

Instead of a narrow high beam, Dual-Burn® delivers:

·       Wide, evenly lit spread close to the vehicle

·       High-intensity forward reach further down the road

ComfortLite® Technology

Developed to increase real-world performance, ComfortLite® improves both beam pattern and usable light output—not just brightness.

What it does:

·       Delivers more light where it’s needed

·       Adds illumination above the horizon on high beam

·       Increases foreground lighting on low beam

Measured Gains:

·       +45% Raw Lumens

·       +50% Effective Lumens

Performance

·       Significantly improved visibility vs halogen and standard LED upgrades

·       Balanced beam pattern for real-world driving

·       Strong central intensity with wide peripheral coverage

Light Output

·       Raw Lumens:

o   High Beam: 4,170 lm

o   Low Beam: 2,340 lm

·       Effective Lumens:

o   High Beam: 1,340 lm

o   Low Beam: 694 lm

·       Candela:

o   High Beam: 84,700 cd

o   Low Beam: 30,600 cd

·       Colour Temperature:

o   5000K (neutral white)

Electrical Specifications

·       Input Voltage: 12–24V DC

·       Operating Range: 9–32V DC

Wiring:

·       Black – Ground

·       Yellow – Low Beam

·       White – High Beam

Current Draw:

·       High Beam: 3.60A @ 12V / 1.80A @ 24V

·       Low Beam: 2.00A @ 12V / 1.10A @ 24V

Summary

The JW Speaker 8700 EVO 2 PRO Dual-Burn® kit is a proven, high-output LED upgrade for Defender. Supplied as a complete kit with mounting hardware and plug & play wiring, it delivers superior beam performance, durability, and full road legality.
