Mobile Centre complete plug and play kit for JW Speaker DB PRO Evo 2 DRL CHROME headlamp kit

The only certified complete plug and play kits for defender (pair)

Mobile Centre has developed a high-performance LED headlight upgrade specifically for Land Rover Defender, based on the JW Speaker EVO 2 Dual-Burn® Model 8700.

This upgrade delivers a significant improvement in both beam distance and spread, while adding modern DRL (Daytime Running Light) functionality. Designed for UK vehicles, it features the correct right-hand traffic beam pattern for safe and compliant road use.

The kit is a direct replacement upgrade, providing improved visibility, safety, and modern lighting performance over standard halogen units.

Fully road legal (tested by the VCA in Bristol, England) and E-marked, ensuring compliance for MOT and road use.

Backed by an industry-leading 5 year warranty.

What’s Included

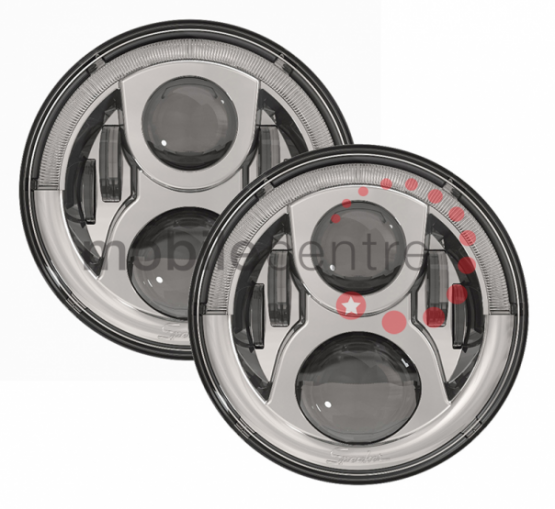

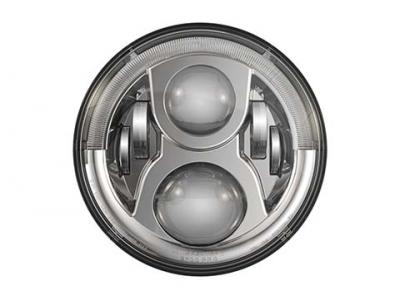

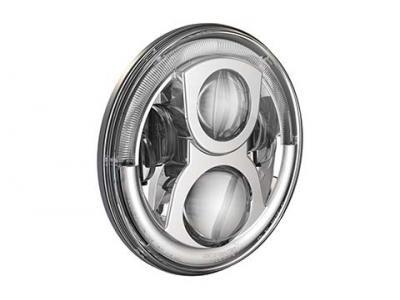

• Pair of CHROME JW Speaker EVO 2 Dual-Burn® 8700 LED headlights

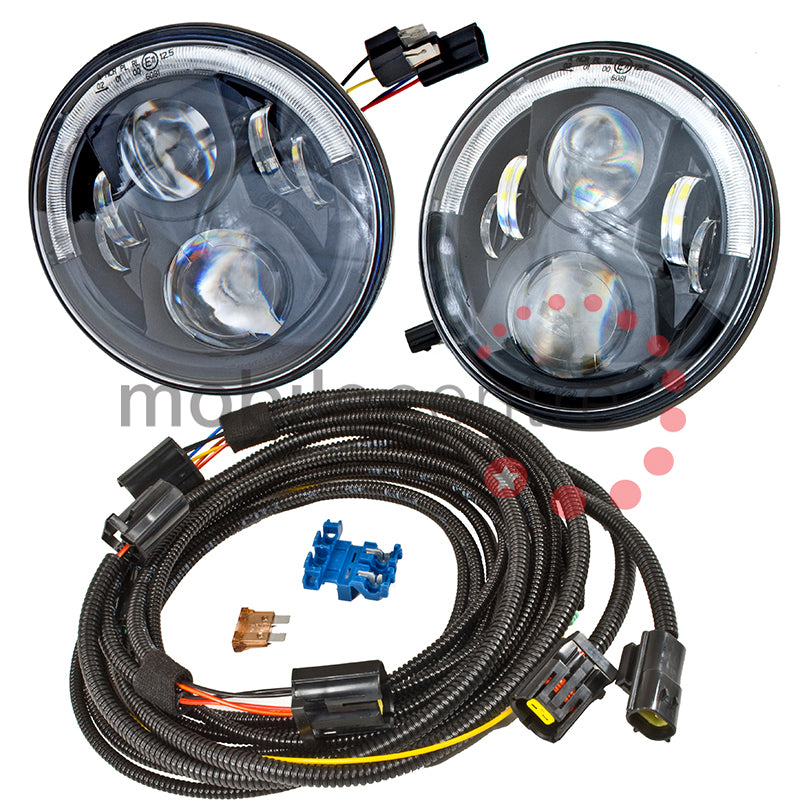

• Defender-specific plug and play wiring kit
• Integrated DRL functionality
• Rings / mounting hardware and fitting kit

Key Features

• Dual-Burn® Technology – Combined high + low beam output
• Integrated DRL Function – Modern daytime running light
• ECE Compliant (UK Road Legal) – Correct RHD beam pattern
• Plug & Play Installation – Designed for Defender wiring/factory plugs
• High Performance LED Output – Improved distance and spread

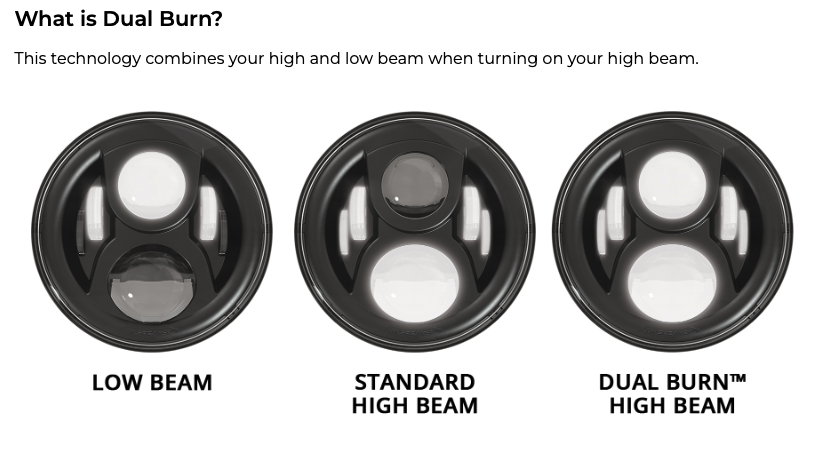

Dual-Burn® Technology

Dual-Burn® activates both high and low beam together when high beam is selected.

How it works:

• Combines wide near-field visibility (low beam)
• With strong long-range projection (high beam)

Result:

• Broader, more complete field of illumination
• Improved visibility across the full road surface
• Better awareness of road edges, obstacles, and terrain

Instead of a narrow high beam, Dual-Burn® delivers:

• Wide, evenly lit spread close to the vehicle
• High-intensity forward reach further down the road

Performance

• Significant upgrade over halogen and basic LED units
• Balanced beam pattern for real-world driving
• Improved near-field and long-distance visibility

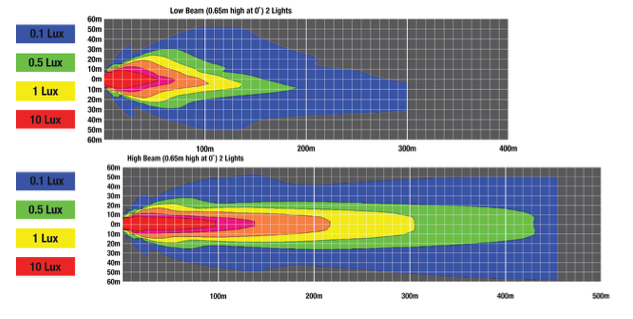

Photometric Performance

• Raw Lumens:
• High Beam: 3,200 lm
• Low Beam: 1,770 lm
• Effective Lumens:
• High Beam: 1,260 lm
• Low Beam: 750 lm
• Candela:
• High Beam: 71,500 cd
• Low Beam: 35,003 cd
• Colour Temperature:
• 5000K (neutral white)

Beam Functions

• High Beam (DOT/ECE) – Long-range projection
• Low Beam (ECE – RHD) – Controlled, road-legal beam pattern
• DRL – Daytime running light
• Front Position Light – Marker/side light function

Electrical Specifications

• Input Voltage: 12V DC
• Operating Range: 9–16V DC
• Transient Protection: 150V peak @ 1Hz–100 pulses

Wiring:

• Black – Ground
• White – High Beam
• Yellow – Low Beam
• Red – Front Position
• Blue – DRL

Current Draw:

• High Beam: 4.20A
• Low Beam: 2.00A
• DRL: 1.60A
• Front Position: 0.16A

Summary

The JW Speaker EVO 2 Dual-Burn® 8700 headlight kit is a proven, road-legal LED upgrade for Defender. With integrated DRL functionality and enhanced beam performance, it delivers a clear improvement in visibility, safety, and modern styling over standard lighting systems.
