SKU:T110S12

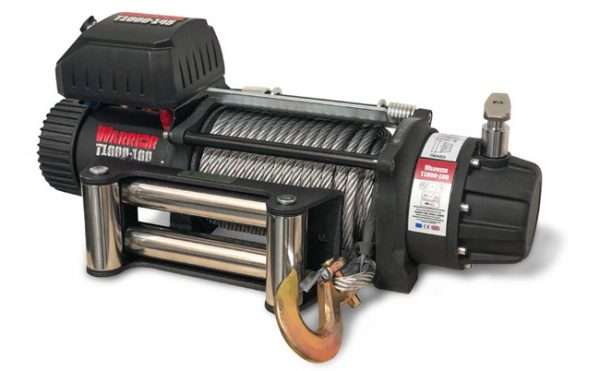

T1000-100 Extreme (Military Spec) Steel Cable Winch

T1000-100 Extreme (Military Spec) Steel Cable Winch

Regular price £879.00 GBP
Regular price Sale price £879.00 GBP
Sale Sold out
Taxes included.

Built specifically for military use, able to withstand extreme climates & temps. Features include hardened 3 stage planetary gears for reliable and efficient use in the harshest environments. The waterproof remote control has thermometric LED indicators signals to monitor the temperature of the motor and high temp lithium grease is used which doesn’t solidify in extreme climates.

Features

  • IP68 Rated Military Grade Winch & Control Box.
  • Hardened 3 stage planetary gears.
  • Waterproof remote control with LED indicators.
  • Corrosion & Chemical Resistant Powder Coat.
  • High Temperature Lithium Grease that won’t solidify in extreme temperatures.

The new SUPER TOUGH Armortek Extreme Winch Rope is designed to withstand the most rigorous winching punishment.

These winch lines have a double braided construction consisting of an inner 12 strand ‘core’ rope with a tightly woven outer shield. The benefits to this type of rope are fantastic. First of all the inner core is extremely well protected from UV rays, as well as dirt abrasion. Secondly, the outer braid acts as an abrasion guard for the entire length of the core line. This translates into a longer lasting and much tougher rope.

BENEFITS OF ARMORTEK EXTREME SYNTHETIC WINCH ROPE

  • Made from ARMORTEK Ultra High Molecular Weight Polyethylene Fiber.
  • Double braided construction.
  • 12′ heat shield for first drum wrap.
  • Lighter than steel (1/6 the weight of steel cable)
  • Armortek Extreme special coating for the highest abrasion resistance and durability.
  • Armortek is rated at 70 percent stronger than wire.
  • Armortek floats, wire doesn’t.
  • You don’t have to worry about wire splinters.
  • No strength loss when overlapped on winch drum.
  • Unlike wire, Armortek will not whiplash if broken.
  • Armortek comes pre-stretched and heat set.

Specifications

  • Rated Line Pull: 10,000 lbs (4,536 kg)
  • Motor Options: 12V: 6.2 hp / 4.6 kW, 24V: 7.6 hp / 5.7 kW
  • Gear Ratio: 228:2
  • Braking Action: External Brake
  • Drum Size: 63 x 217 mm (2.48 x 8.5 in)
  • Cable Size: 10 mm x 25 m (0.39 in x 82 ft)
  • Dimensions: 574 x 160 x 259 mm (22.6 x 6.3 x 10.2 in)
  • Mounting Pattern: 254 x 114.3 mm (10 x 4.5 in), 4-M10
  • Weight: 28 kg (61.7 lbs)
  • Clutch: Manual
